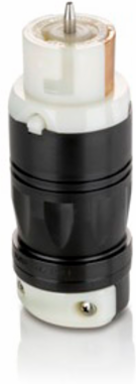

Leviton CS8264C 50 Amp 250 Volt Black & White Locking Connector, Industrial Grade, Nylon Housing
- MPN: CS8264C
- UPC: 078477326077
- PPN: LEV-CS8264C
CAD
$232.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
50Amp, 250V AC, Non-NEMA, 2P, 3W, Black & White Locking Connector, Industrial Grade, Grounding, California-Style(CS) – BLACK-WHITE
Features
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, heat, chemicals, and rough use
- 10-year limited warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- CSA C22.2 No. 42
- File 152105
- RoHS
- Compliant
- Warranty
- Limited Lifetime Warranty
NOM057
UL 498File E13399
Material Specifications
- Assembly Screws
- Brass
- Color
- Black-White
- Face Module
- Nylon
- Ground Shunt
- Bronze
- Plug Blade
- 0.1000inch thick Brass
- Standard Cable Clamp
- Nylon
- Terminal Set Screw
- SS 302/304
Cable Clamp ScrewPhilips Head, SS 304
Dust ShieldSantoprene TPE
Ground PostBrass
Housing MaterialNylon
Plug Blade ShroudSS 302/304
Terminal Block0.062inch thick Copper
Wiring ChamberNylon
Mechanical Specifications
- Cord Range
- .680 - 1.125

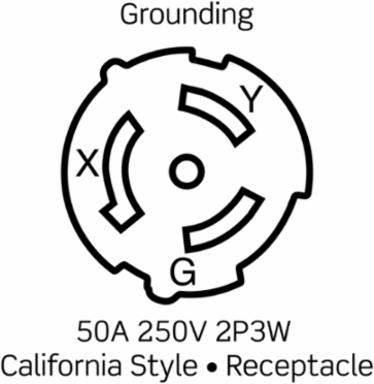

- Terminal ID
- X, W, Y, Z and Green for ground
Product IDRatings and Catalogue No. molded into face and stamped into shroud
Torque Rangeallen wrench to 35 inch-lbs
Product Features
- Brand
- Black and White
- NEMA
- Non-NEMA
Device TypeLocking Connector
Environmental Specifications
- Environment
- Dry
FlammabilityRated HB or better UL94
Electrical Specifications
- Amperage
- 50 A
- Dielectric Voltage Withstand
- 2000V minimum per UL 498
- Maximum Working Voltage
- 250V as rated
- Temperature Rise
- Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
- Wire
- 3
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Pole2
Voltage250 VAC
