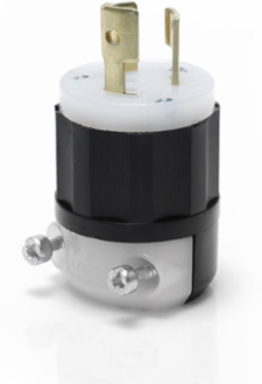

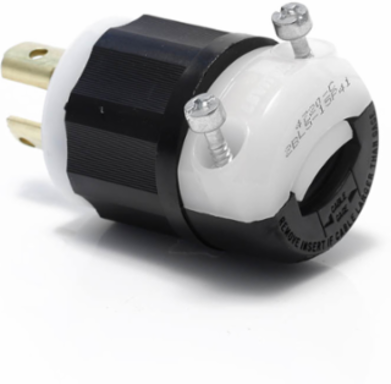

Leviton 4720-C Locking Plug 15 Amp 125 Volt NEMA L5-15P Industrial Grade Black & White
Leviton 4720-C Locking Plug 15 Amp 125 Volt NEMA L5-15P Industrial Grade Black & White
- MPN: 4720-C
- UPC: 078477795491
- PPN: LEV-4720-C
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$14.09/ EA
Description
15 Amp, 125 Volt, NEMA L5-15P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black/White
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes (.245"-.700")
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
- Ideal for motor loads, such as shop vacs and pool pumps, and generators
Specifications
Standards and Certifications
- ANSI
- C-73
- NOM Certified
- 057
- Warranty
- Limited Lifetime Warranty Warranty
CSA C22.2 No. 42File LR-406
UL Fed Spec WC-596File E13393
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- Cord Range
- 0.230 to 0.685
- Terminal Accom.
- 18-10 AWG
- Torque Range
- 10-14 in-lbs
Product IDRatings and NEMA I.D. permanently marked on device
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Wire Gauge18-10 AWG
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Black and White

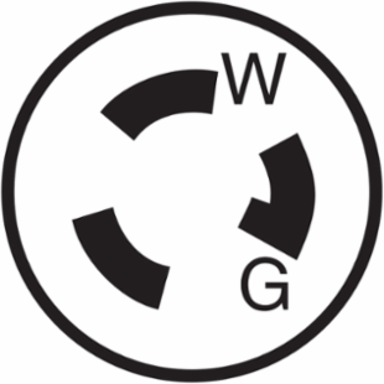

NEMAL5-15P
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- Horsepower Rating
- 1/2 HP
