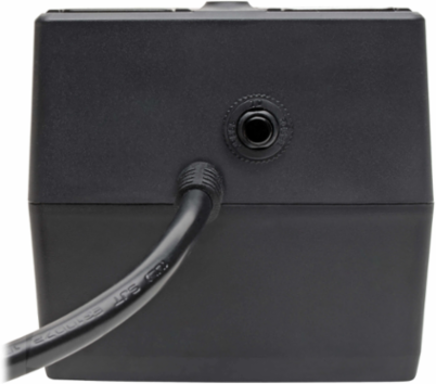

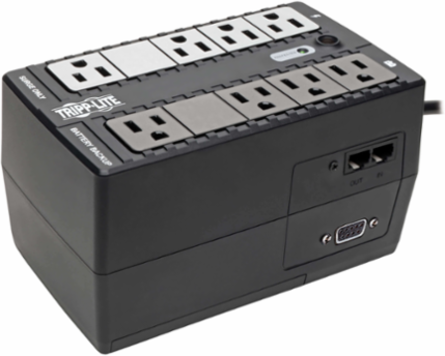

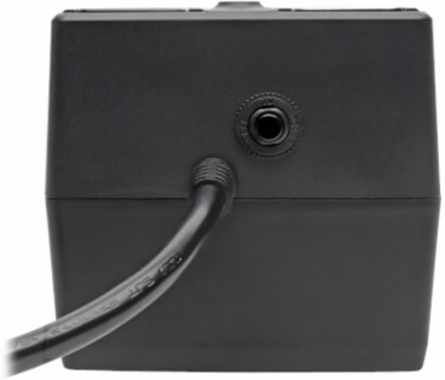

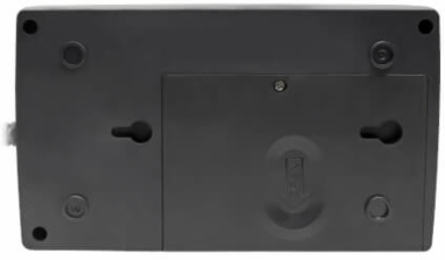

Tripp Lite INTERNET550SER 550VA 300W Standby UPS with 8 NEMA 5-15R Outlets, 120V
- MPN: INTERNET550SER
- UPC: 037332211019
- PPN: TRP-INTERNET550SER
CAD
$186.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
550VA 300W Standby UPS - 8 NEMA 5-15R Outlets, 120V, 50/60 Hz, DB9, 5-15P Plug, Desktop/Wall Mount
Features

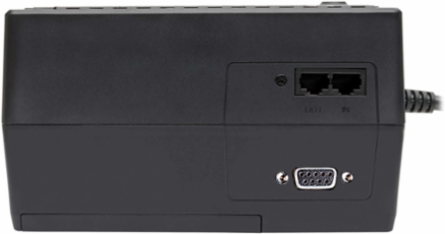

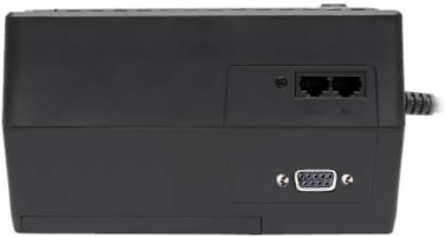

- DB9 serial interface cable included

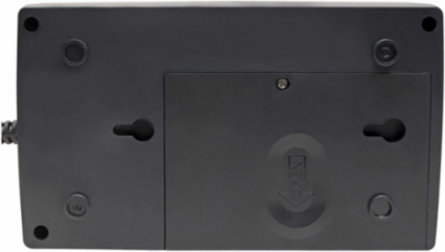

- Battery access door for easy battery replacement
- Replaceable internal batteries
Documentation & Downloads
Specifications
Additional
- Capacity
- 550 VA, 300 W
- Output Watt Capacity
- 300 W
- Frequency Compatibility
- 50 / 60 Hz
- Input Circuit Breakers
- 7 A
- UPS Input Connection Type
- 5-15P
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Transfer Time
- 6 ms typical, 10 ms max
- Communications Interface
- DB9 Serial
- Cold Start
- Supported
- UPS Power Module Dimensions
- 4.13 x 4.33 x 7.28 in. (H x W x D)
- UPS Housing Material
- ABS
- Storage Temperature Range
- 5 to 113 F (-15 to 45 C)
- Operating Elevation
- Up to 3000 m (10,000 ft)
- UPS Certifications
- UL1778, CSA, FCC Part 15 Category B, NOM, RETIE (Colombia)
Output Volt Amp Capacity550 VA
Voltage120 V ( 10% battery mode)

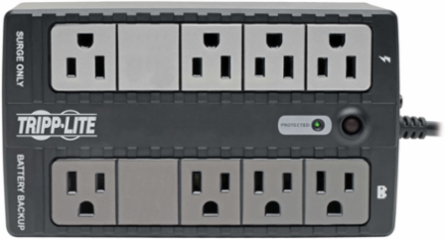

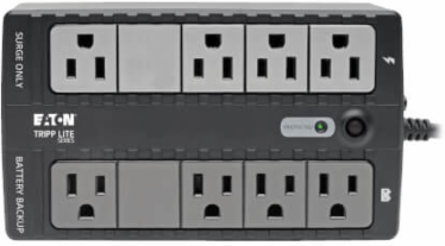

Output Receptacles8 NEMA 5-15R (4 UPS, 4 surge-only)
Rated Input Current6 A max load
Output Voltage Regulation (Line Mode)120 V ( 20%)
Output AC Waveform (AC Mode)Pure sine wave
PowerAlert SoftwareSupported via DB9 Serial port
Communications CableDB9 serial cable included
Battery Recharge Rate6.5 hours (10% to 90%)
Weight3.96 lbs (1.80 kg)
Operating Temperature Range32 to 104 F (0 to 40 C)
Relative Humidity0 to 90%, non-condensing
Warranty3-year limited
Connected Equipment Insurance$100,000 Ultimate Lifetime
