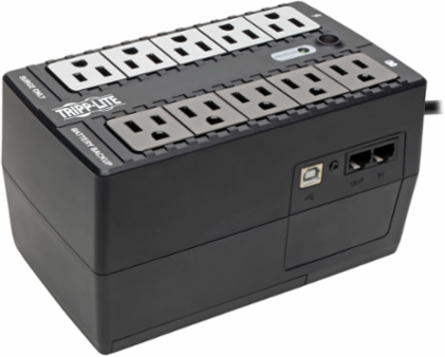

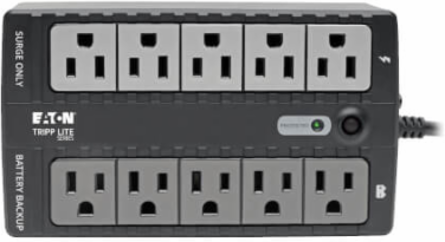

Tripp Lite INTERNET550U 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount
Tripp Lite INTERNET550U 550VA 300W Standby UPS - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount
- MPN: INTERNET550U
- UPC: 037332211026
- PPN: TRP-INTERNET550U
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$166.49/ EA
Description
550VA 300W Standby UPS - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown

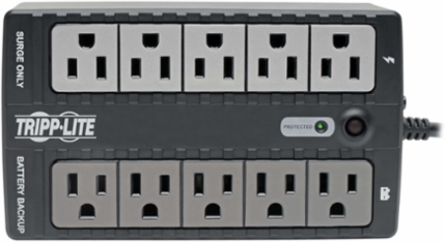

- 10 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- High >98% efficiency with low BTU ratings saves electricity and lowers your energy costs
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
- 550VA/300W/120V Battery Backup for PCs, Home Theater and Digital Signage
- Allows Time to Back Up Critical Files During a Blackout
- 10 NEMA 5-15R Outlets Protect Your Connected Components
- 316 Joules Fight Back Against Unexpected Power Surges

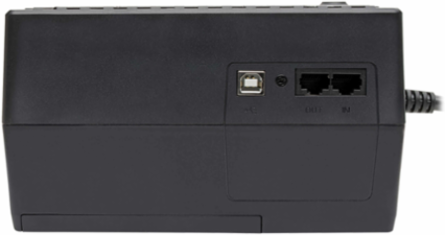

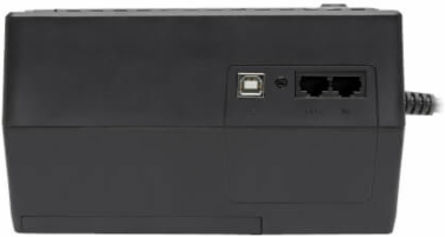

- HID-Compliant USB Port Allows for Automatic Saves and Shutdowns
- Combats Electromagnetic Interference That Can Harm Equipment
- Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7

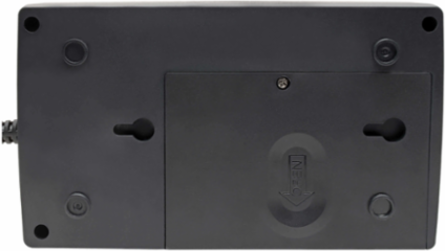

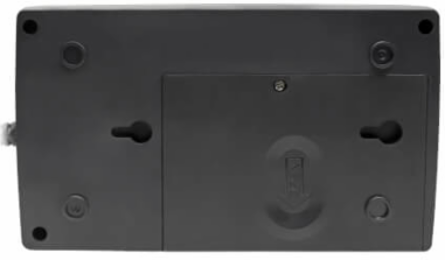

- Compact Housing Compatible with Easy Desktop or Wall-Mount Installation
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 316
- UPS Dataline Suppression
- 1 line TEL/DSL or Ethernet
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 1.2 min. (300w)
- DC System Voltage (VDC)
- 12
- Battery Access
- Battery access door
- Expandable Runtime
- No
Half Load Runtime (min.)5 min. (150w)
Battery Recharge Rate (Included Batteries)6.5 hours (10% to 90%)
Battery Replacement DescriptionReplaceable internal batteries (see manual)
Certifications
- UPS Certifications
- Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsUL1778: 2014 5th EDITION; CAN/CSA-C22.2 NO. 107.3:2014 3rd EDITION; FCC CLASS B; FCC Part 68 Approved (#5WSWP01B005); Industry Canada Approved (#3449A-005, REN0.1B); RETIE (Colombia)
Physical
- Installation Form Factors Supported with Included Accessories
- Tower; Ultra-compact desktop; Wallmount
- Primary UPS Depth (mm)
- 185
- Primary UPS Width (mm)
- 110
- Shipping Weight (lbs.)
- 4.40
- UPS Power Module Dimensions (hwd, in.)
- 4.13 x 4.33 x 7.28
- UPS Power Module Weight (lbs.)
- 3.96
Primary Form FactorDesktop
Primary UPS Height (mm)105
Shipping Dimensions (hwd / in.)7.36 x 5.67 x 10.86
UPS Housing MaterialABS
UPS Power Module Weight (kg)1.80
User Interface, Alerts & Controls
- Switches
- Switch controls power off/on status
- LED Indicators
- 1 Status LED reports operating mode and fault status
Audible AlarmUPS remains silent in battery backup mode; Alarm sounds only to report low-battery, fault, overload and replace-battery conditions
Input
- Rated input current (Maximum Load)
- 6A
- UPS Input Connection Type
- 5-15P
- UPS Input Cord Length (ft.)
- 5
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers7A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 550
- Nominal Voltage Details
- 120v nominal output in battery mode
- Output Voltage Regulation (Line Mode)
- 120V (±20%)
- UPS Output Receptacles (Surge Suppression Only)
- 5 UPS outlets, 5 surge-only outlets
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Receptacles
- (10) 5-15R
Output Watt Capacity (Watts)300
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Battery Mode)120V (±10%)
Output AC Waveform (AC Mode)Pure sine wave
Nominal Output Voltage(s) Supported110V; 115V; 120V
Individually Controllable Load BanksNo
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Communications CableUSB interface cable included
Communications InterfaceUSB (HID enabled)
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 90%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- >98%
- Operating Elevation (m)
- Up to 3000m
Storage Temperature Range+5 to +113 degrees Fahrenheit / -15 to +45 degrees Celsius
AC Mode BTU / Hr. (Full Load)13.1
Operating Elevation (ft.)Up to 10,000 ft.
Overview
- UPC Code
- 037332211026
UPS TypeStandby
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesBattery Independent Restart
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$100,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 6 milliseconds typical (10 milliseconds max)
- High Voltage Transfer to Battery Power (Setpoint)
- 145
Low Voltage Transfer to Battery Power (Setpoint)95
