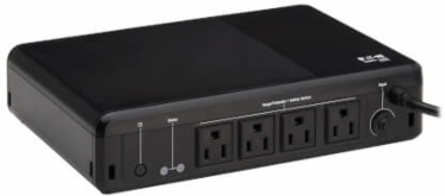

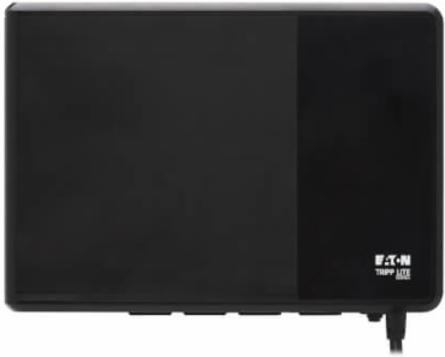

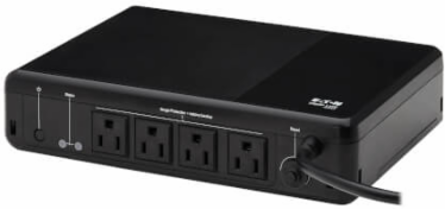

Tripp Lite BC600R Standby UPS, 600VA / 300W, 120V, 4 NEMA 5-15R Outlets, 5-15P Plug, Desktop/Wall Mount
- MPN: BC600R
- UPC: 037332282071
- PPN: TRP-BC600R
CAD
$194.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop

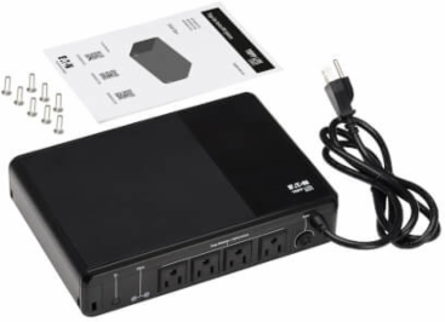

Features
- BC600R 120V 600VA 300W Standby UPS
- (4) M4 x 12 mm screws
- (4) M4 x 20 mm screws
- Quick Start Guide
Documentation & Downloads
Specifications
Dimensions
- UPS Input Connection Type

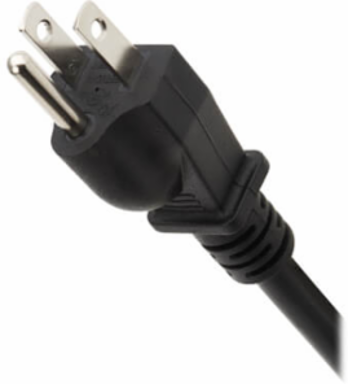

- NEMA 5-15P
- Primary Form Factor

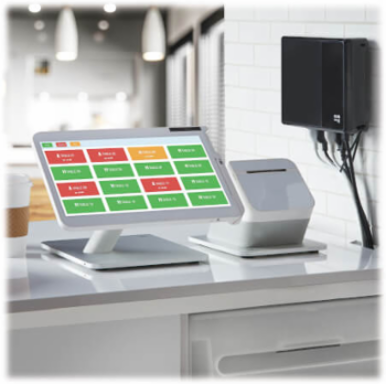

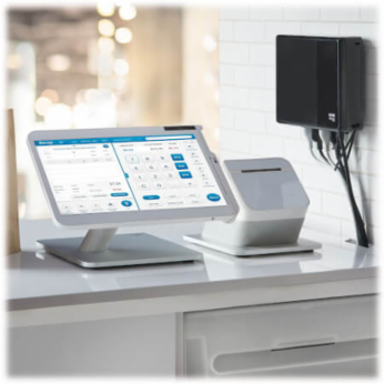

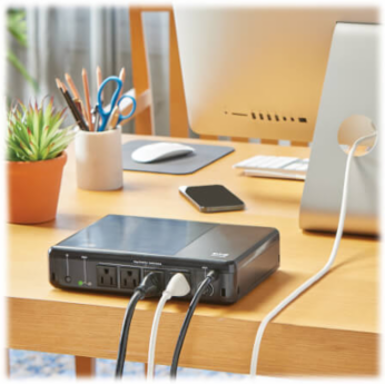

- Desktop; Surface Mount; Wall-mount

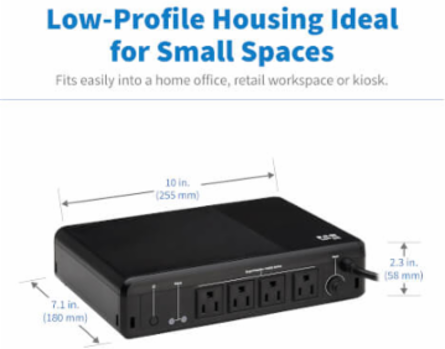

- Unit Dimensions
- 2.283 x 10.040 x 7.090 in
UPS Input Cord Length5 ft
Cooling MethodConvection
Performance
- UPS Type
- Standby
- Output Power
- 300 W
- Output Voltage Regulation
- ±10%
- Frequency Compatibility
- 50/60 Hz, auto-sensing
- Rated Input Current
- 5A
- Input Circuit Breakers
- (1) 7A
- AC Mode Efficiency Rating
- 97%
- Battery Type
- Valve Regulated Lead Acid (VRLA)
- Battery Recharge Time
- 8 hours (10% to 90%)
- Replacement Battery
- RBC36H
- Operating Elevation
- 0–6562 ft (0–2000 m)
- Storage Temperature Range
- 5° to 122°F (-15° to 50°C)
Output Capacity600 VA
Input Voltage120VAC
Output AC WaveformSine wave
Input PhaseSingle-Phase
Maximum Input Amps5.0A
Recommended Electrical Service15A 120V

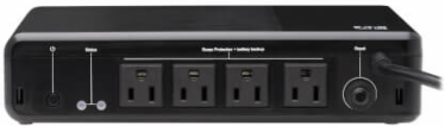

Output Receptacles(4) NEMA 5-15R
DC System Voltage12V

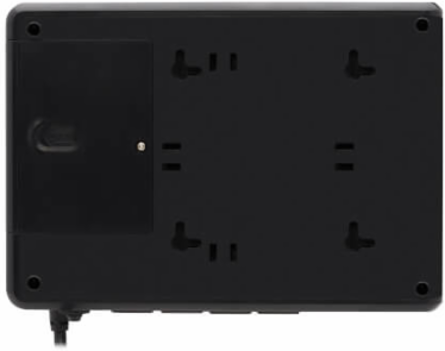

Battery AccessBase-mounted battery access panel
Audible Noise<40 dB at 1 meter
Operating Temperature Range32° to 122°F (0° to 50°C)
Relative Humidity0–95% non-condensing
Reference
- Product Warranty Period
- 3-year limited warranty
Material
- UPS Housing Material
- ABS
Input Cord ColorBlack
