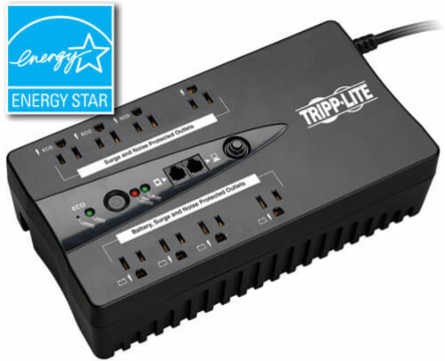

Tripp Lite ECO550UPS ECO Series 120V 550VA 300W Energy-Saving Standby UPS with USB and 8 Outlets, Energy Star V2.0
Tripp Lite ECO550UPS ECO Series 120V 550VA 300W Energy-Saving Standby UPS with USB and 8 Outlets, Energy Star V2.0
- MPN: ECO550UPS
- UPC: 037332143884
- PPN: TRP-ECO550UPS
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$209.33/ EA
Description
ECO Series 120V 550VA 300W Energy-Saving Standby UPS with USB and 8 Outlets, Energy Star V2.0
Features
- 550VA ultra-compact 120V standby UPS, energy-saving ECO outlets
- Maintains AC output during power failures, 99% line mode efficiency
- ECO option turns off set of three outlets when the computer is not in use
- USB, TEL/DSL protection, Wall mountable, Surge-only outlets
- NEMA 5-15P input plug and 8 NEMA 5-15R outlets
- ENERGY STAR Version 2.0 qualified
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 420
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out)
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Half Load Runtime (min.)
- 10 min. (150w)
- Internal UPS Replacement Battery Cartridge
- IMPORTANT BATTERY REPLACEMENT INFORMATION > If your ECO550UPS has no battery access door, please contact a local electronics repair technician to source and install a matching replacement battery; If your ECO550UPS does have a battery replacement door and the original battery inside has a rating of 12V 3.6AH, please contact Tripp Lite for assistance
DC System Voltage (VDC)12
Expandable RuntimeNo
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI); ENERGY STAR Qualified
Physical
- Installation Form Factors Supported with Included Accessories

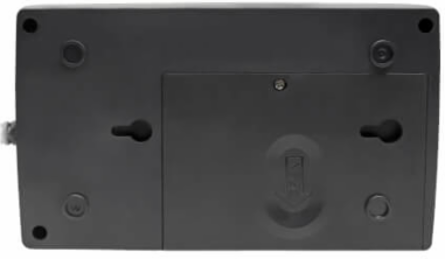

- Tower; Ultra-compact desktop; Wallmount
- Primary UPS Depth (mm)
- 145
- Primary UPS Width (mm)
- 274
- Shipping Weight (lbs.)
- 7.50
- UPS Power Module Dimensions (hwd, in.)
- 3.1 x 10.8 x 5.7
- UPS Power Module Weight (lbs.)
- 6.6
Primary Form FactorDesktop
Primary UPS Height (mm)79
Shipping Dimensions (hwd / in.)8.00 x 4.20 x 13.10
UPS Housing MaterialABS
UPS Power Module Weight (kg)2.99
User Interface, Alerts & Controls
- Switches
- Combination switch controls on/off power status and self-test operation; second recessed push-button switch enables ECO outlet switching
- LED Indicators
- 3 LEDs indicate power status, overload/check battery and ECO-mode status
Audible AlarmAudible alarm indicates power-failure and overload status
Input
- Rated input current (Maximum Load)
- 10A
- UPS Input Connection Type
- 5-15P; Right-Angled
- Recommended Electrical Service
- 15A 120V
Nominal Input Voltage(s) Supported120V AC
UPS Input Cord Length (ft.)6
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 550
- Nominal Voltage Details
- 115v nominal output in battery mode
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Hot-Swap PDU options
- PDUB15 (2U / 8 5-15R outlets)
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Output Receptacles
- (8) 5-15R
Output Watt Capacity (Watts)300
Frequency Compatibility60 Hz
UPS Output Receptacles (Surge Suppression Only)4 UPS outlets, 4 surge-only outlets
Output AC Waveform (AC Mode)Sine wave
Nominal Output Voltage(s) Supported110V; 115V; 120V
Individually Controllable Load BanksNo
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications

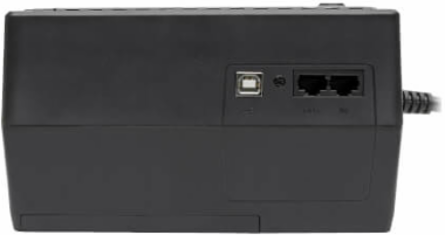

- Communications Interface
- USB (HID enabled)

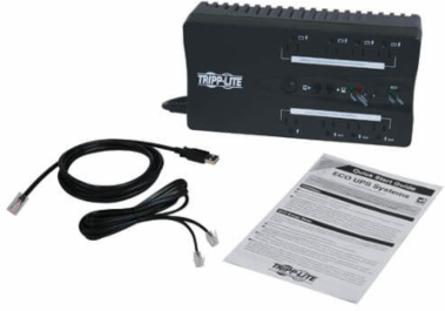

Communications CableRJ to USB interface cable included
Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- 99%
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)14
Overview
- UPC Code
- 037332143884
UPS TypeStandby
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$100,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- AC to battery mode: 4 milliseconds / Battery to AC mode: 3 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 139
Low Voltage Transfer to Battery Power (Setpoint)99
