Documentation & Downloads

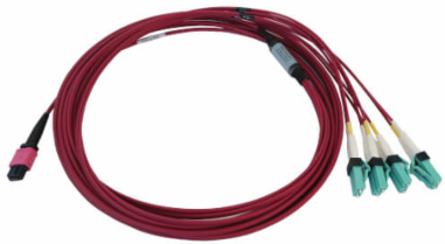

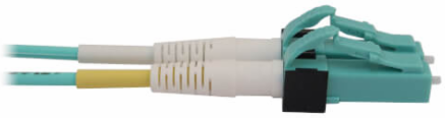

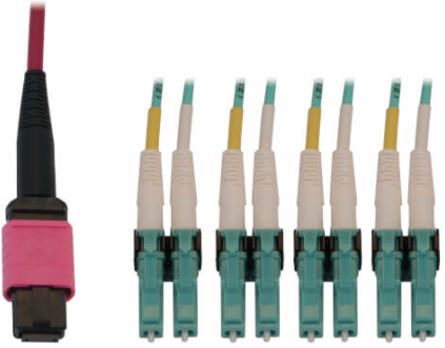

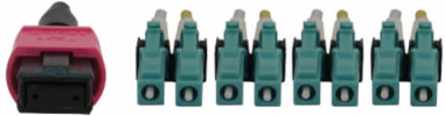

Tripp Lite N845X05M8LMG Fiber Optic Cable, 40/100G Multimode OM4, 12F MTP/MPO-PC to 4x Duplex LC/PC F/M, LSZH, Magenta, 5 m
- MPN: N845X05M8LMG
- UPC: 037332272348
- PPN: TRP-N845X-05M-8L-MG
CAD
$350.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100G Multimode 50/125 OM4 Fiber Optic Cable (12F MTP/MPO-PC to 4x Duplex LC/PC F/M), LSZH, Magenta, 5 m (16.4 ft.)
Documentation & Downloads
Specifications
Performance
- Network Compatibility
- 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
- Storage Temperature Range
- -4° to 140°F (-20° to 60°C)
- Attenuation @ 850NM
- 3.5 dB/km
Operating Temperature Range-4° to 140°F (-20° to 60°C)
Relative Humidity5% to 85% RH, Non-Condensing
Attenuation @ 1300NM1.5 dB/km
Dimensions
- Cable Length
- 5 m (16.4 ft)
- Side A - Connector 1
- 12F MPO (Female)
- Clad Diameter
- 125.0
- Primary Coating Diameter
- 245.0
Number of Fibers8
Side B - Connector 1(4) LC Duplex (Male)
Core Diameter50.0
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Material
- Technology
- Fiber; Multimode
- Cable Jacket Color
- Magenta
- Cable Jacket Material
- LSZH
- Push/Pull Tabs
- Yes
Endface PolishPC
Connector ColorAqua; Magenta; Black
Cable Jacket RatingOFNR
Reference
- Product Warranty Period
- Lifetime limited warranty
