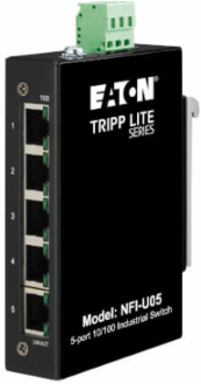

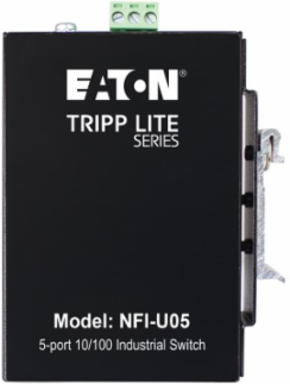

Tripp Lite NFIU05 Unmanaged Industrial Ethernet Switch, 5-Port, 10/100 Mbps, DIN/Wall Mount, -40 to 75°C
- MPN: NFIU05
- UPC: 037332264268
- PPN: TRP-NFI-U05
CAD
$194.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
5-Port Unmanaged Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, DIN/Wall Mount, TAA
Features
- NFI-U05 5-Port Unmanaged Industrial Switch

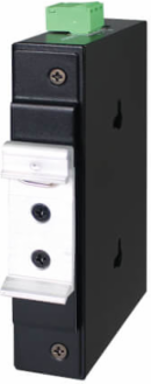

- DIN rail-mounting clip (pre-installed)
- Owner's manual
Documentation & Downloads
Specifications
Performance
| Network Compatibility | 100 Mbps (Fast Ethernet), Auto-negotiable |
|---|---|
| Voltage Compatibility | 12-48 V |
| Maximum Input Amps Details | Maximum of 0.15A DC. The device power shall be supplied by SELV circuit |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
| MAC Auto Learning | Yes |
| Switching Capacity | 1 Gbps (200 Mbps Per Port, Full Duplex) |
|---|---|
| Power Consumption | 3.00 W |
| Operating Temperature | -40 to 167 F (-40 to 75 C) |
| Relative Humidity | 5% to 95% (Non-Condensing) |
| Storm Control | No |
Dimensions
| Number of Ports | 5 |
|---|---|

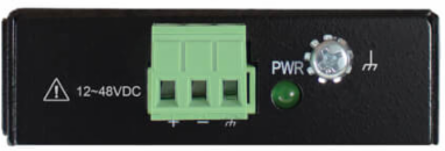

| Power Source | 3-Pin Terminal Block |
| Unit Weight | 0.42 lb |
| Network Switch Ports | (5) 10/100 (RJ45) |
|---|---|
| Unit Dimensions | 4.300 x 0.920 x 2.910 in |
| LED Indicators | PWR (Green): Power; 100 (Green): Ethernet speed 100Mbps; LNK/ACT (Green): data transmitting/receiving |
Reference
| Product Type | Unmanaged Industrial Ethernet Switch |
|---|
| Product Warranty Period | 3-year limited warranty |
|---|
Material

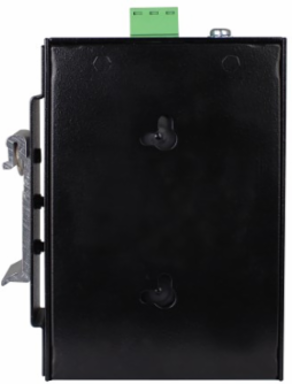

| Primary Form Factor | DIN-Rail; Wall-mount |
|---|
| Color | Black |
|---|
