Tripp Lite NFIU082A Unmanaged Industrial Ethernet Switch, 8-Port, 10/100 Mbps, iQoS, DIN Mount, -40 to 75°C
- MPN: NFIU082A
- UPC: 037332282040
- PPN: TRP-NFI-U08-2A
CAD
$292.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
8-Port Unmanaged Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, iQoS, DIN Mount, TAA
Features
- NFI-U08-2A 8-Port Unmanaged Industrial Ethernet Switch

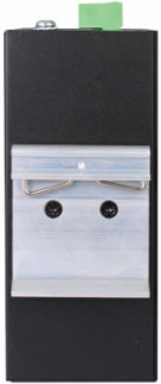

- DIN rail-mounting clip (pre-installed)
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
- Number of Ports
- 8
- Power Source
- 6-Pin Terminal Block
- Unit Weight
- 0.97 lb
Network Switch Ports(8) 10/100 (RJ45)
Unit Dimensions3.920 x 1.970 x 4.560 in
LED IndicatorsPWR (Green): Power; 100 (Green): Ethernet speed 100Mbps; LNK/ACT (Green): data transmitting/receiving; RPS (Green): Redundant Power ON; ALM (Green): Alarm triggered for abnormal power or power link down status
Performance
- Network Compatibility
- 100 Mbps (Fast Ethernet), Auto-negotiable
- Voltage Compatibility
- 12-48 V
- Maximum Input Amps Details
- Maximum of 0.5A DC. The device shall be supplied by SELV circuit
- Storage Temperature Range
- -40° to 185°F (-40° to 85°C)
- MAC Auto Learning
- Yes
Switching Capacity1.6 Gbps (200 Mbps Per Port, Full Duplex)
Power Consumption3.00 W
Operating Temperature Range-40° to 167°F (-40° to 75°C)
Relative Humidity5% to 95% (Non-Condensing)
Reference
- Product Type
- Unmanaged Industrial Ethernet Switch with EIP QOS
Product Warranty Period3-year limited warranty
Material
- Primary Form Factor
- DIN-Rail
ColorBlack
