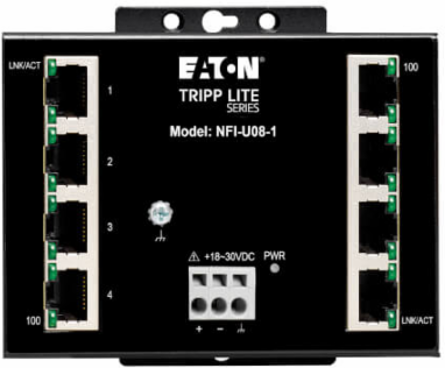

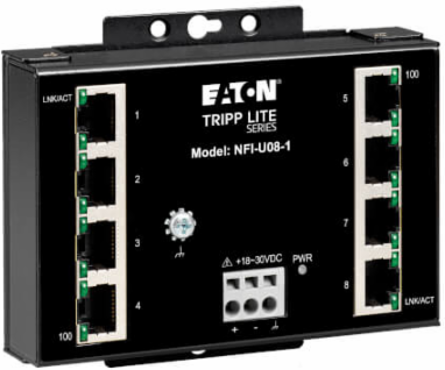

Tripp Lite NFIU081 Unmanaged Industrial Ethernet Switch, 8-Port, 10/100 Mbps, DIN/Wall Mount, -40 to 75°C
- MPN: NFIU081
- UPC: 037332264275
- PPN: TRP-NFI-U08-1
CAD
$209.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
8-Port Unmanaged Fast Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, DIN/Wall Mount, TAA
Features
- NFI-U08-1 8-Port Unmanaged Fast Industrial Ethernet Switch

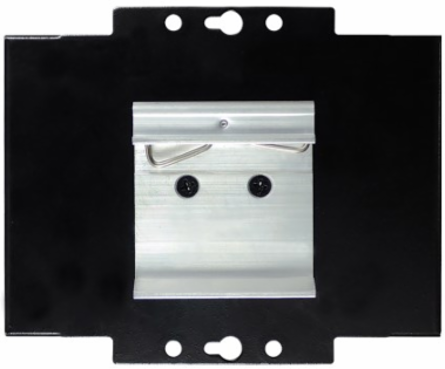

- DIN rail-mounting clip (pre-installed)
- Wall-mount bracket (pre-installed)
- Owner's manual
Documentation & Downloads
Specifications
Performance
- Network Compatibility
- 100 Mbps (Fast Ethernet), Auto-negotiable
- Voltage Compatibility
- Input
- Maximum Input Amps Details
- Maximum of 0.2A DC power. Device power shall be supplied by LPS (Limited Power Source)
- Storage Temperature Range
- -40° to 185°F (-40° to 85°C)
- Jumbo Frames
- 1536
- Storm Control
- No
Switching Capacity1.6 Gbps (200 Mbps Per Port, Full Duplex)
Power Consumption4.00 W
Operating Temperature-40 to 167 F (-40 to 75 C)
Relative Humidity5% to 95% (Non-Condensing)
MAC Auto LearningYes
Material
- Primary Form Factor
- DIN-Rail; Wall-mount
ColorBlack
Dimensions
- Number of Ports
- 8
- Power Source
- 3-Pin Terminal Block
- Unit Dimensions
- 3.540 x 4.300 x 1.210 in
- LED Indicators
- PWR (Green): Power; 100 (Green): Ethernet speed 100Mbps; LNK/ACT (Green): data transmitting/receiving
Network Switch Ports(8) 10/100 (RJ45)
Input Plug TypeHard-wire
Unit Weight0.32 lb
Reference
- Product Type
- Unmanaged Industrial Fast Ethernet Switch
Product Warranty Period3-year limited warranty
