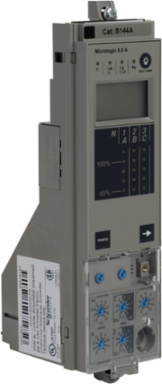

Square D S144A MicroLogic 6.0A Trip Unit, LSIG Protection, 7.85 Inch Height

MPN: S144A
UPC: 785901979296
PPN: SCH-S144A

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Square D PowerPacT P, M and R-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either basic electronic trip system or Micrologic electronic trip units. PowerPacT P- and R-frame molded case circuit breakers may be specified with any of the following MicroLogic Electronic Trip Units This MicroLogic Standard 6.0A Trip Unit with field-interchangeable long-time rating plug has LSIG configuration and ammeter aditional feature. Adjustable rating plugs are offered in eight different ranges of long-time pickup adjust ments. Each adjustment times the sensor rating (lr x In) of the circuit breaker sets the long-time pickup value of the circuit breaker. Trip unit provides true RMS sensing, LED long-time pickup indication and thermal imaging. Also it has available test kits.
