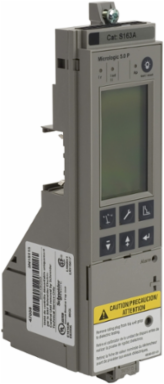

Square D S163A Trip unit, PowerPacT P, R, with rating plug, Micrologic 5.0P, LSI protection, metering and advanced protection
Square D S163A Trip unit, PowerPacT P, R, with rating plug, Micrologic 5.0P, LSI protection, metering and advanced protection
- MPN: S163A
- UPC: 785901643203
- PPN: SCH-S163A
- UNSPSC: 39121603
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Square D PowerPacT P, M and R-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either basic electronic trip system or Micrologic electronic trip units. PowerPacT P- and R-frame molded case circuit breakers may be specified with any of the following MicroLogic Electronic Trip Units This MicroLogic Standard 5.0P Trip Unit with field-interchangeable long-time rating plug has LSI configuration and Metering with Advanced Protection feature Adjustable rating plugs are offered in eight different ranges of long-time pickup adjust ments. Each adjustment times the sensor rating (lr x In) of the circuit breaker sets the long-time pickup value of the circuit breaker Trip unit provides true RMS sensing, LED long-time pickup indication and thermal imaging. Also it has available test kits.
Features
- Micrologic 5.0P trip unit for use with PowerPacT P- and R-frame breakers
- Trip units are designed to protect power circuits and loads
- The unit trip is field replaceable
- Micrologic standard trip unit features LSI protection plus, metering and advanced protection
- UL listed and CSA marked
Specifications
Conformance Attributes
- Product Certifications
- CSA, UL Listed
Important Information Attributes
- Circuit Breaker Type
- NT, NW
- Local Publishable Date
- 2025-11-13
- Device Type
- LV equipment - LV Trip Unit
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- Outside of Europe
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- rating plug
- Sustainable Packaging
- No
- Trip Unit Name
- MicroLogic 5.0 P
- Medium Desc
- Trip unit, PowerPacT P, R, with rating plug, Micrologic 5.0P, LSI protection, metering and advanced protection
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Local Data StatusPublishable
ManufacturerSchneider Electric
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorY
Package Weight Lbs553.382 g
Product Or Component Typetrip unit
ReturnabilityYes
Tightening Torque0.8-0.8 N.m
Trip Unit Technologyelectronic
Stocking FlagN
Trip Unit Protection FunctionsLSI
Product NameMicroLogic
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Recycled Metal Content At Cr Level
- 0 %
- Packaging Made With Recycled Cardboard
- Yes
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Packaging Without Single Use PlasticNo
General Attributes
- Product Or Component Type
- trip unit
Provided Equipmentrating plug
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
