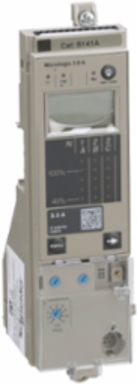

Square D S141A MicroLogic Trip Unit, 3.0A, Electronic, LI Protection, Ammeter
- MPN: S141A
- UPC: 785901899457
- PPN: SCH-S141A
CAD
$3779.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D PowerPacT family is industry leading innovation and protection for heavy duty commercial and industrial appliacations Each MicroLogic™ trip unit is equipped with an interchangeable long-time rating plug to provide maximum design flexibility, system protection, and field upgradeability. Trip unit requires an adjustable rating plug to determine the long-time pickup range of the circuit breaker. These plugs can be ordered separately for field-installable upgrades. This trip unit model is 3.0a (UL/ANSI only) with LI protection and ammeter feature.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Circuit Breaker Type | R-Frame, P-frame |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Name | MicroLogic |
| Provided Equipment | rating plug |
| Sustainable Packaging | No |
| Trip Unit Name | MicroLogic 3.0 A |
| Trip Unit Technology | electronic |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Package Weight(Lbs) | 489.885 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | CSA, UL Listed |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | N |
| Device Type | LV equipment - LV Trip Unit |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1912 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | trip unit |
| Returnability | Yes |
| Tightening Torque | 0.8-0.8 N.m |
| Trip Unit Protection Functions | LI |
| Type Of Measurement | ammeter |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536308000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
General Attributes
| Product Or Component Type | trip unit |
|---|
| Provided Equipment | rating plug |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
