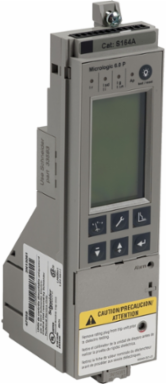

Square D S164A MicroLogic 6.0P Trip Unit with LSIG Protection, 2.11 Inch Width, 7.85 Inch Height
- MPN: S164A
- UPC: 785901886808
- PPN: SCH-S164A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D PowerPacT P, M and R-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either basic electronic trip system or Micrologic electronic trip units. PowerPacT P- and R-frame molded case circuit breakers may be specified with any of the following MicroLogic Electronic Trip Units This MicroLogic Standard 6.0P Trip Unit with field-interchangeable long-time rating plug has LSIG configuration and Metering with Advanced Protection feature Adjustable rating plugs are offered in eight different ranges of long-time pickup adjust ments. Each adjustment times the sensor rating (lr x In) of the circuit breaker sets the long-time pickup value of the circuit breaker. Trip unit provides true RMS sensing, LED long-time pickup indication and thermal imaging. Also it has available test kits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth2.88 in
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- metering, advance protection
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- trip unit
- Returnability
- Yes
- Tightening Torque
- 0.8-0.8 N.m
- Trip Unit Protection Functions
- LSIG
- Height Nominal
- 7.85 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109170
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyUL Listed, CSA
Local Publishable Date2025-12-16
Stocking FlagY
Device TypeLV equipment - LV Trip Unit
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Product NameMicroLogic
Provided Equipmentrating plug
Sustainable PackagingNo
Trip Unit NameMicroLogic 6.0 P
Trip Unit Technologyelectronic
Width Nominal2.11 in
Package Weight(Lbs)1.361 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- trip unit
Provided Equipmentrating plug
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Batteries & Runtime Attributes
- Removable Battery
- USER_REPLACEABLEUser replaceable
