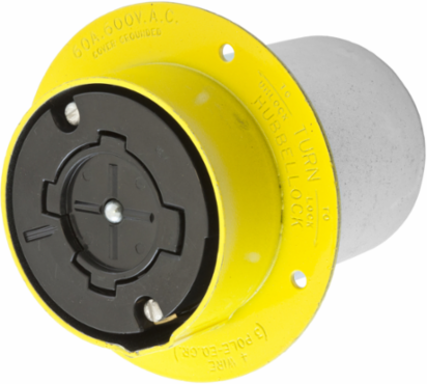

Hubbell Wiring Device-Kellems HBL26421 Hubbellock Industrial Flanged Receptacle 60A 600V, 3-Pole, 4-Wire
- MPN: HBL26421
- UPC: 783585017600
- PPN: HBL-HBL26421
- UNSPSC: 39121406
CAD
$824.52
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hubbellock® Industrial Flanged Receptacle, 60A 600V, 3-Pole 4-Wire Grounding phenolic interior with Steel housing and flange, Non NEMA, Screw Terminal
Features
- Spring loaded safety shutter contains arcing when mating or un-mating devices under load
- Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
- Box terminals in conjunction with stainless steel terminal screws provide maximum termination strength and dependability
- Metallic housing provides protection from damage in harsh environments
- Auto Ejects Improperly Made Connection
Specifications
Key Specifications
| Country of Origin | Puerto Rico |
|---|---|
| Dimensions | 4.12 in x 2.88 in x 4.53 in |
| Industry Standard(s) | Certified to CSA Standard;Listed to UL Standard |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accomodation - #8 AWG - #4 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Application | Heavy Duty Industrial |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Wires | 4-Wire |
| Size | 4.12 in x 2.88 in x 4.53 in |
| Standard | Certified to CSA Standard;Listed to UL Standard |
| Voltage Rating | 600 V |
| Voltage Rating Description | 600 V |
| Width | 2.88 in |
| Display Size | Standard Sized Product |
| Number Of Wires | 4-Wire |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 26421 |
| Material - Mounting Hardware | Screw Mounting |
| Material | Steel, Zinc Plated |
| BOX SIZE | 6.495x12.745x9.375 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585017600 |
| Each - Pack Description | Each |
| NAICS Code | 335931A102 |
| Current / Amperage Rating | 60 A |
|---|---|
| Height | 4.53 in |
| Length | 4.12 in |
| Amperage Rating | 60 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Number of Poles | 3-Pole |
| Phase | Multi Phase |
| Special Features | Auto Ejects Improperly Made Connection |
| Type | Flanged Receptacle |
| Wire Size | #8 AWG to #4 AWG |
| Weight | 2.05 lb. |
| Connectivity | Screw Terminals |
| Number Of Poles | 3-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Description - Invoice | H/LOCK FLGD RCPT, 3P4W, 60A 600V |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Sub Class Code | A08A170 |
| Current Rating | 60 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 11.400 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Lowest Level UOM | Each |
