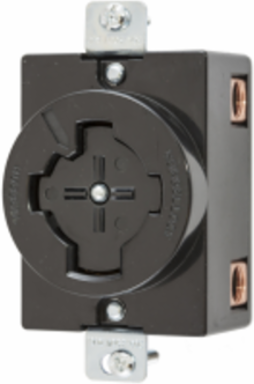

Hubbell Wiring Device-Kellems HBL20403 Hubbellock Industrial Flush Receptacle 30A 600V AC, 3-Pole 4-Wire, Thermoplastic
Hubbell Wiring Device-Kellems HBL20403 Hubbellock Industrial Flush Receptacle 30A 600V AC, 3-Pole 4-Wire, Thermoplastic
- MPN: HBL20403
- UPC: 783585017280
- PPN: HBL-HBL20403
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$170.22/ EA
Description
Locking Devices, Hubbellock®, Industrial, Flush Receptacle, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Non- NEMA, Screw Terminal, Black
Features
- Spring loaded safety shutter contains arcing when mating or un-mating devices under load
- Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
- Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
- Thermoset molded housing provides maximum heat resistance
- Auto Ejects Improperly Made Connection
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 3.28 in x 1.94 in x 1.75 in
- Height
- 1.75 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 2,000V minimum;Environmental - Flammability - UL 94 V0 for Receptacles and Inlets.HB or better for Plugs and Connectors;Environmental - Moisture Resistance - IP30 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accomodation - #10 AWG - #6 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Wires
- 4-Wire
- Special Features
- Auto Ejects Improperly Made Connection
- Voltage Rating
- 250 VDC/600 VAC
- Voltage Rating Description
- 250 VDC/600 VAC
- Width
- 1.94 in
- Display Size
- Standard Sized Product
- Number Of Wires
- 4-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 20403
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 5.600x11.600x9.500 (in)
- Carton - Number of Sub Packs
- 20
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585017280
- Case Weight
- 3.718 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.800 in
- Pallet Weight
- 1591.200 lb.
Current / Amperage Rating20/30 A
Each - Width2.200 in
Length3.28 in
Amperage Rating20/30 A
Dielectric StrengthWithstands 2,000V minimum
Number of Poles3-Pole
Size3.28 in x 1.94 in x 1.75 in
TypeReceptacle
Wire Size#10 AWG to #6 AWG
Weight0.55 lb.
ConnectivityScrew Terminals
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceH/LOCK RCPT, 30A 600V, 3P4W
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A170
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.9 lb.
Carton - Pack DescriptionCarton
Carton - Total Units20 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585017289
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
