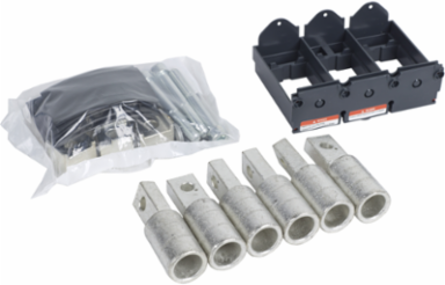

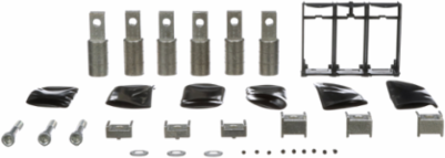

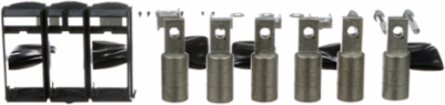

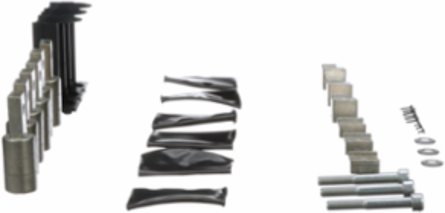

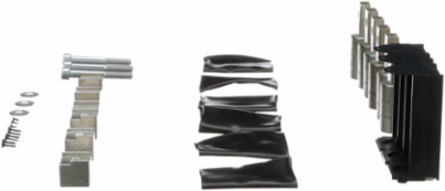

Schneider Electric CYA600L52K3 PowerPact L Mechanical Lug Kit, 600A, Copper, 250 to 500 kcmil, Set of 6
Schneider Electric CYA600L52K3 PowerPact L Mechanical Lug Kit, 600A, Copper, 250 to 500 kcmil, Set of 6
- MPN: CYA600L52K3
- UPC: 785901165200
- PPN: SCH-CYA600L52K3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1402.20/ EA
Description
L-frame circuit breakers are available with MICROLOGIC electronic trip units only. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Circuit breakers rated for 100% operation are available but require specially-designed enclosures and 194°F (90°C) rated wire. Devices with the MICROLOGIC electronic trip unit provide adjustable protection settings for greater system flexibility In addition to electronic protection, MICROLOGIC trip units allow users to monitor both energy and power. PowerPact H-, J-, and L-frame circuit breakers offer high performance and a wide range of interchangeable trip units to protect most applications. Electronic trip units provide highly accurate protection with wide setting ranges and can integrate measurement, metering and communication functions. This PowerPact L, mechanical lug is a connection accessory with a rated current of 600A and is made of copper. This unit mount device complys to UL & CSA standards and comes in a set of 6.
Specifications
Specifications
- Range Of Product
- PowerPact L
- Quantity Per Set
- set of 6
Accessory / Separate Part Categoryconnection accessory
Product Or Component Typemechanical lug
Complementary
- [In] Rated Current
- 600-600 A
- Tightening Torque
- 50-50 N.m 150-240 mm² 250...500 kcmil)
- Material
- copper
Mounting Modeunit mount
Awg Gauge250...500 kcmil copper
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1410004EN
Pvc FreeYes
Halogen Content PerformanceHalogen free plastic parts product
Environment
- Product Certifications
- UL || CSA
