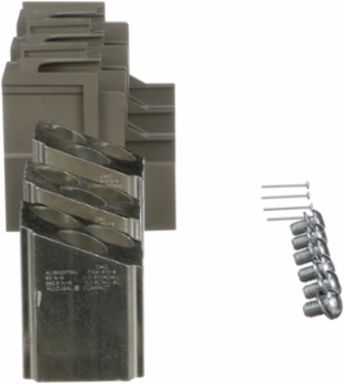

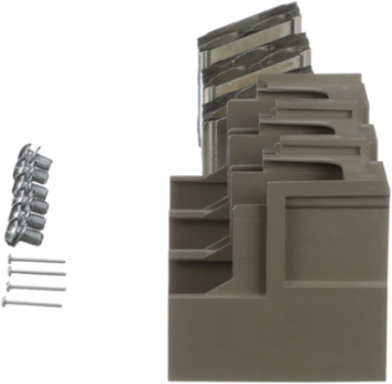

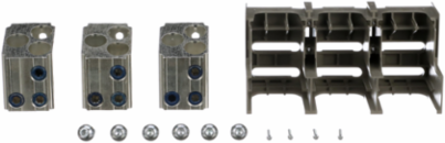

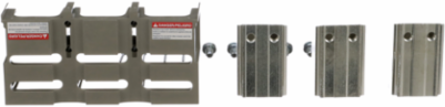

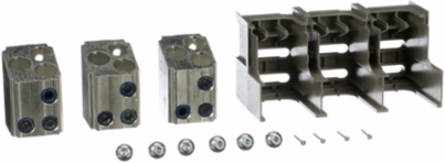

Square D AL1200P7KU PowerPact P Mechanical Lug Kit, 1200A, Aluminum, 3/0 to 750 kcmil, Set of 3
- MPN: AL1200P7KU
- UPC: 785901654766
- PPN: SCH-AL1200P7KU
CAD
$2469.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This mechanical lug kit is for PowerPacT P circuit breakers. These aluminum lugs are rated for 1200A. The lugs accept 3/0 AWG to 750kcmil aluminum and copper conductors; 750kcmil compact Al only. These lugs comply with UL and CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 1200-1200 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Circuit Breaker Type
- PGL, PJL, PLL
- Certificate Agency
- UL, CSA
- Local Publishable Date
- 2026-04-10
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 3/0 AWG...750 kcmil aluminium/copper
- Fixing Mode
- by screws
- Mounting Mode
- unit mount
- Product Or Component Type
- mechanical lug
- Range Of Product
- PowerPact P
- Sustainable Packaging
- No
- Accessory / Separate Part Category
- connection accessory
- Package Weight(Lbs)
- 1.978 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Location Of Connectiondownstream, upstream
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2542
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialaluminium
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 3
ReturnabilityYes
Tightening Torque50-50 N.m 95-380 mm² (3/0 AWG...750 kcmil)
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536908585
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mechanical lug
Range Of ProductPowerPact P
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
