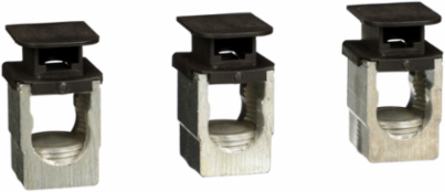

Schneider Electric AL250JD PowerPacT J-Frame Mechanical Lug Kit, 200-250A, Set of 3, Aluminium

MPN: AL250JD
UPC: 785901574835
PPN: SCH-AL250JD

$193.55

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PowerPacT H- and J-Frame Molded-Case Circuit Breakers (150A and 250A) is a flexible, high performance offer certified to global standards. They are available with optional features such as Thermal magnetic or Micrologic™ trip protection 15–250A up to 600Vac and 250Vdc. They also come with a high performance UL listed interrupting ratings from 18 to 200kA at 480Vac. PowerPacT H- and J-Frame have common mounting holes, handle locations and trim dimensions with many shared accessories and auxiliaries. This PowerPacT mechanical lug is a connection accessory. This PowerPacT J-Frame accessory has a rated current of 200-250A and is made of aluminium and comes in set of 3. These accessories are UL, CSA, NOM, IEC, CCC certified and CE marked for global acceptance. This product comes with an 18 month warranty.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Complementary Attributes

Line Rated Current	200-250 A

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Cable Material	aluminium, copper
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Traceability	No
Service Catalog Item	Finished good
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Mounting Mode	by screws
Product Or Component Type	mechanical lug
Range Of Product	PowerPact J
Sustainable Packaging	Yes
Halogen-free Status	Halogen free product
Package Weight(Lbs)	101.000 g
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Location Of Connection	upstream, downstream
Local Publishable Date	2026-03-25
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2525
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Material	aluminium
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 3
Returnability	Yes
Accessory / Separate Part Category	connection accessory
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Reach Free Shvc	Yes
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes

Take Back	No
Halogene Performance	Halogen free product
Mercury Free	Yes
Halogen Content Performance	Halogen free product
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
