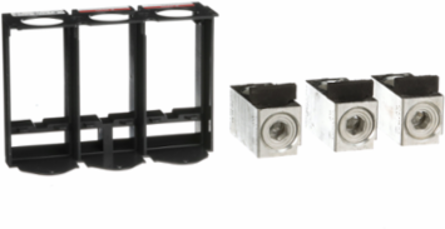

Schneider Electric AL600LF52K3 PowerPacT L-Frame Mechanical Lug Kit, 400-600A, 3/0 AWG to 500 kcmil, Aluminum

MPN: AL600LF52K3
UPC: 785901134053
PPN: SCH-AL600LF52K3

$1279.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This mechanical lug is a connection accessory is a PowerPacT Multistandard circuit breaker. This lug is for a 3 pole, PowerPacT L-Frame breakers. With a rated current of 400-600A, this lug is made of aluminum. This lug is capable of 1 aluminum wire of AWG 3/0 with a 500 kcmil rating. This product comes in a set of 3.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Physical Attributes

Kcmil Size	500 kcmil

Complementary Attributes

Line Rated Current	400-600 A

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Cable Material	aluminium, copper
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Traceability	No
Service Catalog Item	Finished good
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	3/0 AWG
Material	aluminium
Number Of Cables	2
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 3
Range Of Product	PowerPact multistandard
Sustainable Packaging	Yes
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536908585

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Location Of Connection	upstream, downstream
Local Publishable Date	2026-03-11
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2542
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Mounting Mode	by screws
Number Of Poles	3P
Product Or Component Type	mechanical lug
Range	PowerPact
Returnability	Yes
Accessory / Separate Part Category	connection accessory
Package Weight(Lbs)	584.000 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
