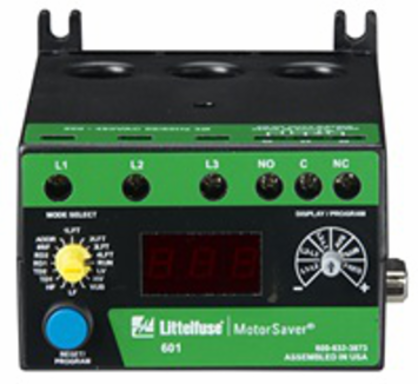

Littelfuse 601-CS-D-P1 601-CS-D-P1 - 601-CS-D-P1 Series
- MPN: 601-CS-D-P1
- UPC: 079458990850
- PPN: LTF-601-CS-D-P1
CAD
$1441.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
601-CS-D-P1 - 601-CS-D-P1 Series
Specifications
Key Specifications
| Input Voltage (V) | 200 to 480VAC |
|---|---|
| Input AC Line Frequency (Hz) | 50/60Hz |
| Output Load Rating (VA) | Pilot Duty: 480VA @ 240VAC; General Purpose: 10A @ 240VAC |
| Repeat Accuracy (%) | Voltage: ±0.5% of nominal voltage; Current: ±1% (<175 amps direct) |
| Current Accuracy (%) | ±3% (<100 amps direct) |
| Surge Protection | IEC: 61000-4-5 Level 3 2kV line-to-line; Level 4 4kV line-to-ground |
| Pollution Degree | 3 |
| Life | Electrical: 1 x 105 operations at rated load; Mechanical: 1 x 106 |
| Mounting Method | Surface mount (4 - #8 screws) or DIN rail mount |
| Storage Temperature (F/C) | -40° to 80°C (-40° to 176°F) |
| Dimensions | 3.05 H x 3.85 W x 5.05 D in. (77.5 x 97.8 x 128.3 mm) |
| Maximum Input Power | 10W |
|---|---|
| Output Form | SPDT |
| Full Load Amp Range (A) | 0.5 - 175A (direct); 176 - 800A (CTs required) |
| Voltage Accuracy (%) | ±1% |
| Ground Fault Accuracy (%) | ±3% |
| Protection Class | IP20 |
| Communications Protocol | Modbus RTU |
| Termination Type | Torque: 7in-lbs |
| Operating Temperature | -20° to 70°C (-4° to 158°F) |
| Humidity | 10-95% non-condensing per IEC 68-2-3 |
| Weight (lbs/g) | 1.2 lbs. (19.2 oz. 544.31 g) |
