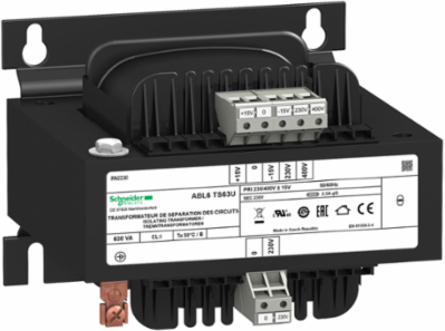

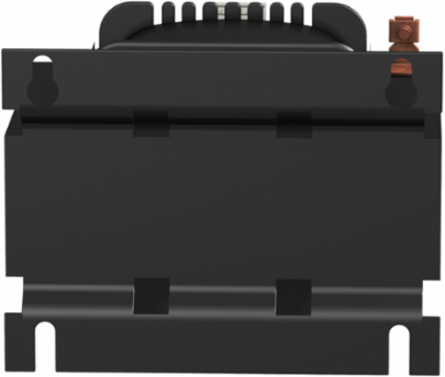

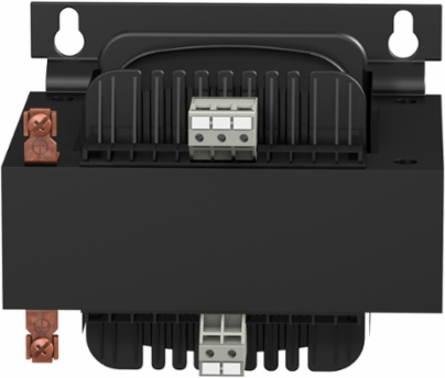

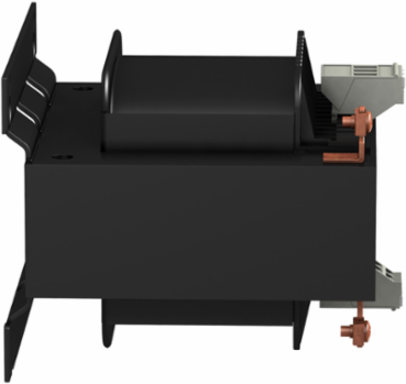

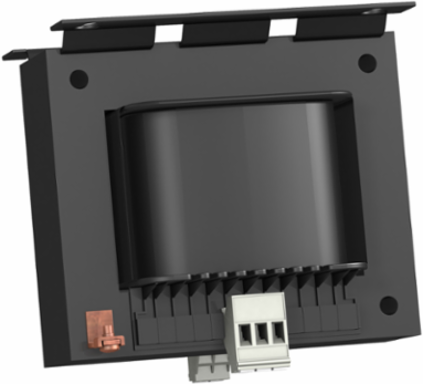

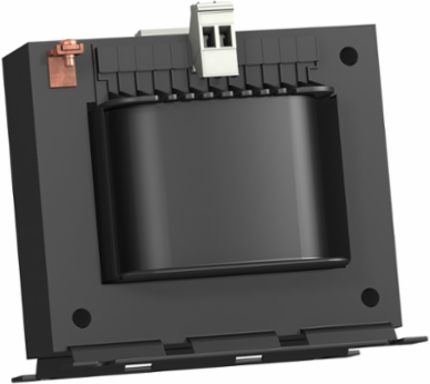

Schneider Electric ABL6TS63U voltage transformer - 230..400 V - 1 x 230 V - 630 VA
- MPN: ABL6TS63U
- PPN: SCH-ABL6TS63U
CAD
$527.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This ABL6 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V to 400V AC, a rated output voltage of 230V AC and a rated power of 630VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining. It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia |
|---|
| Depth | 144.0 mm |
|---|
Complementary Attributes
| Maximum Voltage Drop At Rated Load | 0.4 % |
|---|
| Rated Power In Va | 630 VA |
|---|
Important Information Attributes
| Environmental Characteristic | EMC conforming to IEC 62041safety conforming to EN 61558-1, safety conforming to EN 61558-2-4 |
|---|---|
| Certificate Agency | EAC, UR, DNV-GL |
| Local Publishable Date | 2026-02-24 |
| Stocking Flag | Y |
| Service Catalog Item | Finished good |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1848 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Compatibility Code | ABL6T |
| Efficiency | 93 % |
| Marking | CE |
| No Load Losses | 18.9 W |
| Power Dissipation In W | 47.4 W |
| Product Or Component Type | safety and isolation transformer |
| Range Of Product | Modicon Transformer Optimized |
| Secondary Winding | single |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Height Nominal | 130.0 mm |
| Connections - Terminals | for input connection: screw type terminals, connection capacity: 5 x 4 mm² 11 AWGfor input ground connection: screw type terminals, connection capacity: 1 x 4 mm² 11 AWGfor output connection: screw type terminals, connection capacity: 2 x 4 mm² 11 AWG |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504314065 |
| Fixing Mode | by 4 screws 7 mm vertical panel horizontal, by 4 screws 7 mm vertical panel vertical, by 4 screws 7 mm horizontal panel with derating to 90 % |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Dielectric Strength | 2000 V between winding and ground4000 V between primary and secondary |
| Electrical Insulation Class | class B |
| Network Frequency Limits | 47-63 Hz |
| Overvoltage Category | class I conforming to VDE 0106-1 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | No |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1212002EN |
| Width Nominal | 150.0 mm |
| Short-circuit Voltage | 0,0368 |
| Package Weight(Lbs) | 10.317 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-50 °C, -20-50 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP1212002EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-80 °C, -40-80 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 9842.52 ft (3000 m) |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1212002EN |
General Attributes
| Product Or Component Type | safety and isolation transformer |
|---|
| Range Of Product | Modicon Transformer Optimized |
|---|
ETIM
| ETIM 8 | EC002486 |
|---|
| ETIM 9 | EC002486 |
|---|
Output Attributes
| Output Protection Type | against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection, against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection, against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
|---|---|
| Output Voltage | 230 V AC |
| Output Sustained Overvoltage | 3 % no load, hot state) |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage | 230 V AC single phase N-L1, 400 V AC phase to phase L1-L2 |
|---|---|
| Input Voltage Tolerance | +/- 15 V, +/- 15 V |
| Input Voltage Limits | 360...440 V, 207...253 V |
|---|---|
| Efficiency | 93 % |
