Tripp Lite PDUH32HV 7.4kW Basic PDU, 1U Rack-Mount, 32A 230V Input, 10 C13 Outlets, 3.6 m Cord
- MPN: PDUH32HV
- UPC: 037332183224
- PPN: TRP-PDUH32HV
CAD
$633.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Delivers 230V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment. Ideal for data centers, server rooms and network wiring closets.
Features

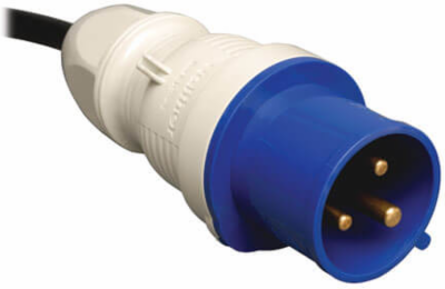

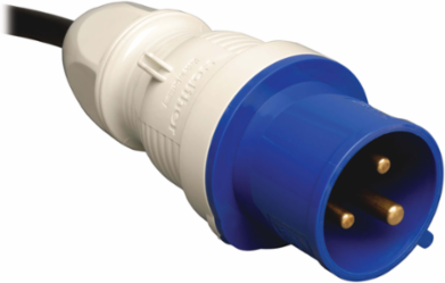

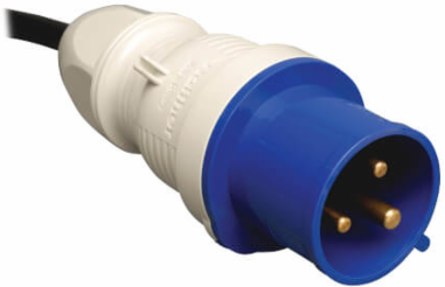

- IEC 309 32A Blue (2P+E) input with 3.6 m power cord
- 10 total C13 outlets—8 rear and 2 front
- Switchless design prevents accidental shutdown
- Reversible all-metal housing
- Dual 20A circuit breakers protect against overloads
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Output Capacity
- 7.7 kW (240V), 7.4 kW (230V), 7 kW (220V), 6.4 kW (200V) / 32A total; 16A max per breaker bank; 10A max per C13 outlet
- Input Voltage
- 200, 208, 220, 230, 240 V
- Input Phase
- Single-Phase
- Output Receptacles
- 10 C13
- Input Cord Length
- 12 ft (3.6 m)
- Mounting Options
- 0U vertical, wall, under-counter, workbench
- Dimensions (HxWxD)
- 1.75 x 17.5 x 3.75 in (4.5 x 44.5 x 9.53 cm)
- Material
- Metal
- Certifications
- CE (EN 60950-1), CE Class A, RoHS
- Relative Humidity
- 5 to 95% non-condensing
- Plug Type
- IEC 309 32A Blue (2P+E)
Input Amperage32A
Output Voltage200, 220, 230, 240 V
Frequency50 / 60 Hz
Overload ProtectionTwo 20A circuit breakers protect 5 outlets each
Form Factor1U rackmount, horizontal
Minimum Rack Depth6 in (15.24 cm)
Weight6.32 lbs (2.87 kg)
TVSS GroundingRear grounding lug
Storage Temperature Range-30°C to +50°C (-22°F to +122°F)
Operating Elevation0-10,000 ft (0-3000 m)
Warranty2-year limited
