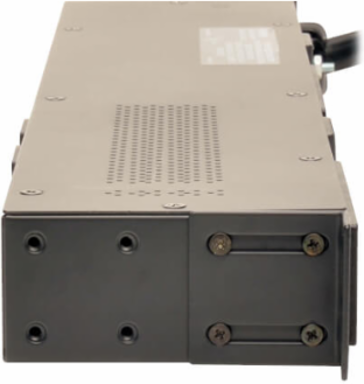

Tripp Lite PDUH32HV19 7.4kW Single-Phase 230V Basic PDU, 4 C19 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount

7.4kW Single-Phase 230V Basic PDU, 4 C19 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
7.4kW Single-Phase 230V Basic PDU, 4 C19 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
7.4kW Single-Phase 230V Basic PDU, 4 C19 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
7.4kW Single-Phase 230V Basic PDU, 4 C19 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
7.4kW Single-Phase 230V Basic PDU, 4 C19 Outlets, IEC 309 32A Blue Input, 3.6 m Cord, 1U Rack-Mount
  • MPN: PDUH32HV19
  • UPC: 037332183200
  • PPN: TRP-PDUH32HV19

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$676.36/ EA

Description

Delivers 230V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment. Ideal for data centers, server rooms and network wiring closets.

Features

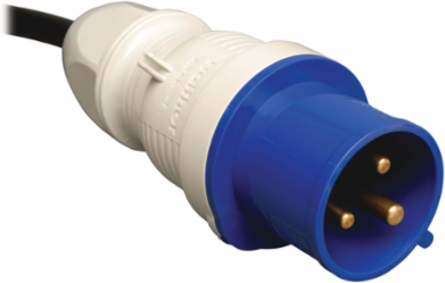

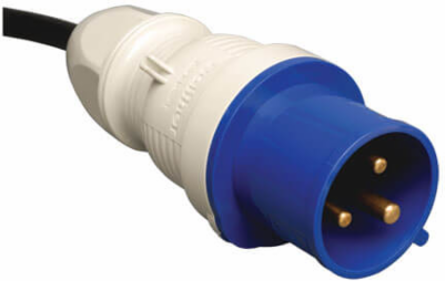

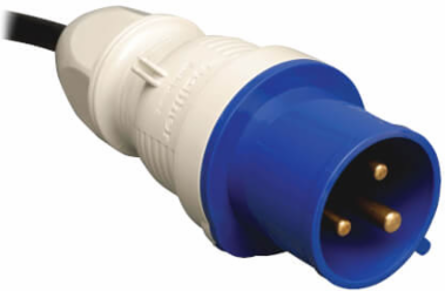

  • IEC 309 32A Blue (2P+E) input with 3.6 m power cord
  • 4 rear C19 outlets
  • Switchless design prevents accidental shutdown
  • Reversible all-metal housing
  • Dual 20A circuit breakers protect against overloads
  • 2-year limited warranty

Specifications

Certifications

Certifications
Tested to CE (EN 60950-1), CE Class A, RoHS

Physical

Form Factors Supported
1U rackmount, 0U vertical mount, wallmount and under-counter
Minimum Device Depth (in.)
6.8
Shipping Dimensions (hwd / in.)
3.00 x 20.25 x 11.25
Unit Dimensions (hwd / in.)
1.75 x 17.5 x 3.75
Material of ConstructionMetal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)7.07
Unit Weight (lbs.)6.32

User Interface, Alerts & Controls

Switches
n/a

Input

PDU Input Voltage
200; 208; 220; 230; 240
Maximum Input Amps
32
Input Phase
Single-Phase
Recommended Electrical Service32A 230V
PDU Plug TypeIEC-309 32A BLUE (2P+E)
Input Cord Length (ft.)12

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(4) C19
Overload Protection
Two 20A circuit breakers protect 2 outlets each
Output Capacity Details7.7kW (240V), 7.4kW (230V), 7kW (220V), 6.4kW (200V) / 32A total capacity; 16A max per breakered outlet bank; 16A max per C19 outlet
Output Nominal Voltage200; 220; 230; 240

Environmental

Storage Temperature Range
-30°C to +50°C (-22°F to +122°F)
Relative Humidity5 to 95% non-condensing

Overview

UPC Code
037332183200
PDU TypeBasic

Special Features

TVSS Grounding
Rear grounding lug

Warranty

Product Warranty Period (Worldwide)
2-year limited warranty
