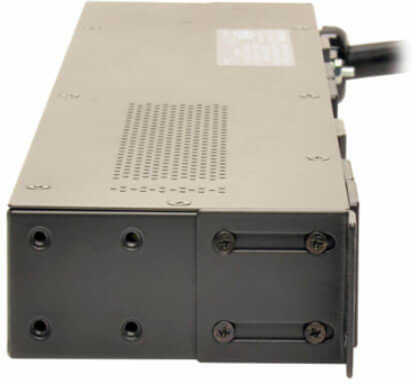

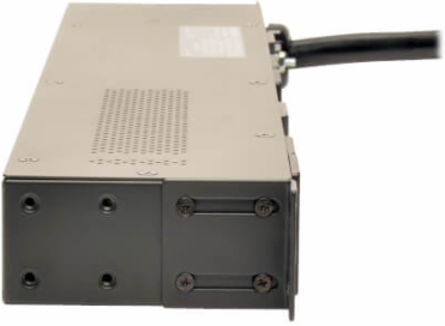

Tripp Lite PDUH30HV19 5/5.8kW Single-Phase 208/240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. Cord, 1U Rack-Mount

5/5.8kW Single-Phase 208/240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. Cord, 1U Rack-Mount
5/5.8kW Single-Phase 208/240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. Cord, 1U Rack-Mount
5/5.8kW Single-Phase 208/240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. Cord, 1U Rack-Mount
5/5.8kW Single-Phase 208/240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. Cord, 1U Rack-Mount
5/5.8kW Single-Phase 208/240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. Cord, 1U Rack-Mount
  • MPN: PDUH30HV19
  • UPC: 037332183194
  • PPN: TRP-PDUH30HV19

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$744.54/ EA

Description

Delivers 208/240V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment. Ideal for data centers, server rooms and network wiring closets.

Features

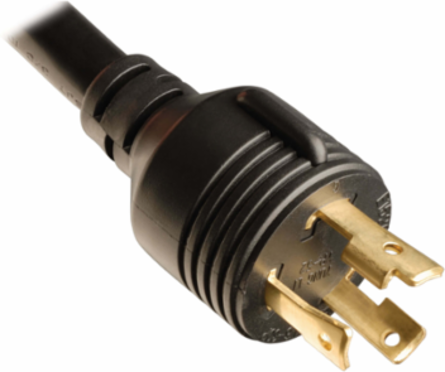

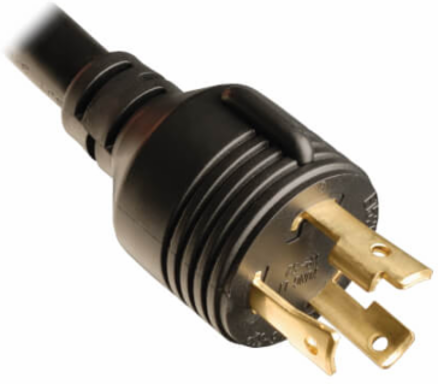

  • NEMA L6-30P input with 12 ft. (3.6 m) power cord
  • 4 rear C19 outlets
  • Switchless design prevents accidental shutdown
  • Reversible all-metal housing
  • Dual 20A circuit breakers protect against overloads
  • 2-year limited warranty

Specifications

Certifications

Certifications
Tested to UL60950-1 (USA), CSA-C22.2 (Canada), RoHS

Physical

Form Factors Supported
1U rackmount, 0U vertical mount, wallmount and under-counter
Minimum Required Rack Depth (inches)
6.8
Shipping Dimensions (hwd / in.)
3.00 x 20.25 x 11.25
Unit Dimensions (hwd / in.)
1.75 x 17.5 x 3.75
Material of ConstructionMetal
PDU Form FactorHorizontal (1U)
Shipping Weight (lbs.)8.49
Unit Weight (lbs.)7.74

User Interface, Alerts & Controls

Switches
n/a

Input

PDU Input Voltage
200; 208; 240
Maximum Input Amps
30
PDU Plug Type
NEMA L6-30P
Input Cord Length (ft.)
12
Recommended Electrical Service30A 208/240V
Maximum Input Amps Details30A maximum (agency de-rated to 24A continuous)
Input PhaseSingle-Phase

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(4) C19
Overload Protection
2 20A breakers protect 2 C19 outlets each
Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet
Output Nominal Voltage200; 208; 240

Environmental

Storage Temperature Range
-30°C to +50°C (-22°F to +122°F)
Relative Humidity5-95% non-condensing

Overview

UPC Code
037332183194
PDU TypeBasic

Special Features

TVSS Grounding
Rear grounding lug

Warranty

Product Warranty Period (Worldwide)
2-year limited warranty
