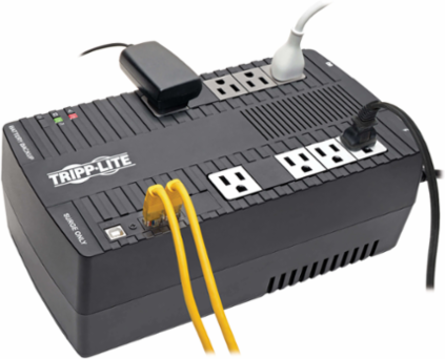

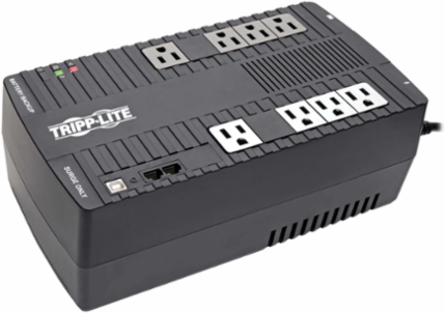

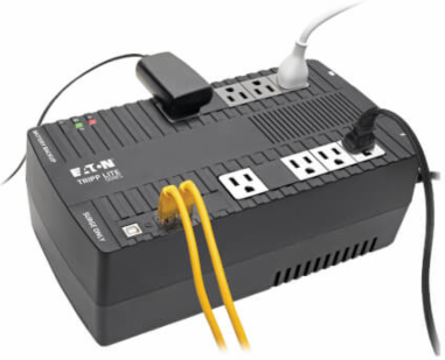

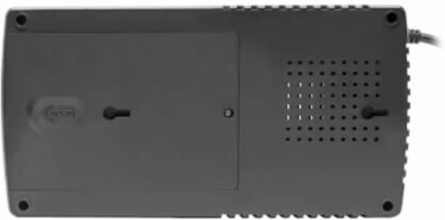

Tripp Lite AVR700U 700VA 350W Line-Interactive UPS with 8 NEMA 5-15R Outlets, 120V
- MPN: AVR700U
- UPC: 037332211477
- PPN: TRP-AVR700U
CAD
$209.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
700VA 350W Line-Interactive UPS with 8 NEMA 5-15R Outlets, 120V
Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown

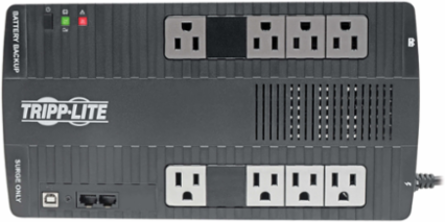

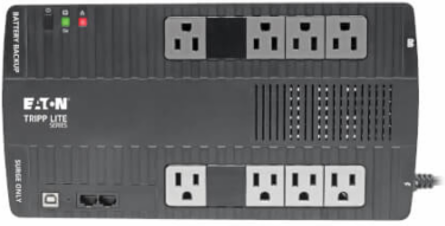

- 8 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- High >95% efficiency with low BTU ratings saves electricity and lowers your energy costs
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
- 700VA/350W/120V Battery Backup for PCs, Home Theater or Digital Signage
- Allows Time to Back Up Critical Files During a Blackout
- 8 NEMA 5-15R Outlets Protect Your Connected Components
- Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
- 316 Joules Fight Back Against Unexpected Power Surges
- Combats Electromagnetic Interference That Can Harm Equipment
- Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
- HID-Compliant USB Port Allows for Automatic Saves and Shutdowns

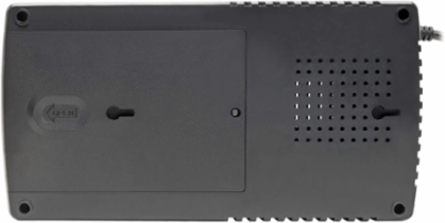

- Compact Housing Compatible with Easy Desktop or Wall-Mount Installation
Documentation & Downloads
Specifications
Additional
- Capacity
- 700 VA
- Voltage
- 120 V
- UPS Type
- Line-Interactive
- Transfer Time
- 6 ms typical (10 ms max)
- Full Load Runtime
- 2 min (350 W)
- Output Voltage Regulation (Battery Mode)
- 120 V (±10%)
- Output AC Waveform (Battery Mode)
- PWM sine wave
- Input Phase
- Single-Phase
- Recommended Electrical Service
- 15 A 120 V
- Output Receptacles
- (8) 5-15R NEMA
- Installation Form Factors Supported
- Tower, Ultra-compact desktop, Wallmount
- UPS Dimensions (H x W x D)
- 4.33 x 6.4 x 12 in (110 x 163 x 305 mm)

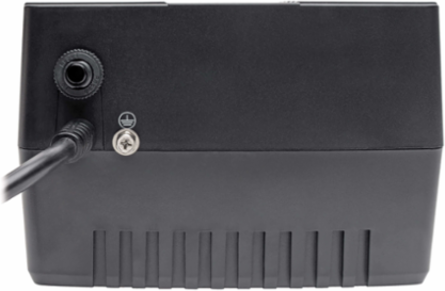

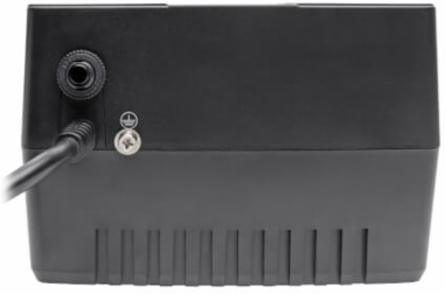

- Grounding Lug
- Includes side-panel grounding lug
- Certifications
- UL1778, CSA (Canada), NOM (Mexico), FCC Part 15 Category A
- Storage Temperature Range
- +5 to +113 °F / -15 to +45 °C
- Operating Temperature Range
- +32 to +104 °F / 0 to +40 °C
- Battery Replacement
- Replaceable internal batteries
- Network UPS Tools Compatibility
- Yes
- LED Indicators
- 2 status LEDs (Green: power status, Red: battery-low, overload, replace-battery, fault)
- Operating Elevation
- Up to 10,000 ft (3000 m)
Wattage350 W
Efficiency>95%
Rated Input Current (Maximum Load)10 A
Half Load Runtime10 min (175 W)
Output Voltage Regulation (Line Mode)120 V (+6%/-12%)
Output AC Waveform (AC Mode)Pure sine wave
Frequency Compatibility50 / 60 Hz
Nominal Input Voltage120 V AC
Cold StartSupported
Surge Protection Joule Rating316 J
UPS Power Module Weight13.7 lbs (6.21 kg)
Input Connection Type5-15P
Battery Recharge Rate8 hours (10% to 90%)
Battery AccessBattery access door
Communications InterfaceUSB (HID enabled)
Relative Humidity0 to 90%, non-condensing
UPS Housing MaterialABS
SwitchesPower on/off switch
Connected Equipment Insurance$100,000 Ultimate Lifetime Insurance (U.S., Canada & Puerto Rico)
