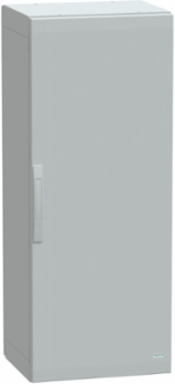

Schneider Electric NSYPLA1254G PanelSeT PLA Polyester Enclosure 1250x500x420mm IP65 IK10
- MPN: NSYPLA1254G
- PPN: SCH-NSYPLA1254G
CAD
$1427.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

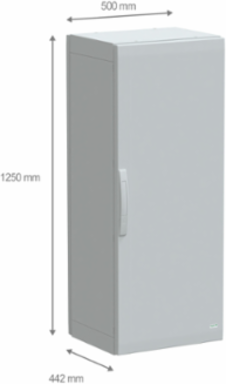

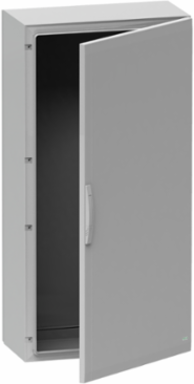

Designed for durability and versatility, the PanelSeT PLA floor-standing enclosure from Schneider Electric is an exceptional choice for a wide range of applications. With its robust polyester construction reinforced with fiberglass, this enclosure boasts an IP65 rating, ensuring it remains completely sealed against dust and water ingress. Measuring 1250mm in height, 500mm in width, and 420mm in depth, it features a solid front door that can be opened from either side, providing flexible access for maintenance. The enclosure is also designed to withstand harsh conditions, with an IK10 impact protection rating and a fire resistance of up to 960°C, making it suitable for various environments and applications. Certified to multiple standards including UL and IEC, this enclosure not only meets but exceeds the requirements for reliable electrical protection.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 500 mm, 500 mm
Enclosure Nominal Height1250 mm, 1250 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door
- Enclosure Mounting
- floor-standing
- Product Or Component Type
- suitable enclosure
- Removable Parts
- door by hinges, rear panel by fixing element
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 53 kg CO2 eq., 52.88428770916738
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 105 kg CO2 eq., 105.35272119387552
- Certificate Agency
- Veritas, UL/cUL listed, DNV Marine
- Local Publishable Date
- 2025-09-16
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Body Type
- sealed top and bottom part assembled with side parts
- Device Short Name
- PLA
- Electrical Insulation Class
- class II
- Fire Resistance
- 960 °C IEC 62208
- Number Of Doors
- 1
- Product Name
- PanelSeT PLA
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 226 kg CO2 eq.
- Door Type 1 Door Type
- Solid
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Spain, ES
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential, In %
- 6
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door TypeSolid front, Solid
Materialpolyester reinforced with fibreglass
RangePanelSeT
Carbon Footprint Of The Distribution Phase A457.57435782478879, 58 kg CO2 eq.
Carbon Footprint Of The Installation Phase A59.769359744611478, 10 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door Opening Sidereversible 120 °)
Energy Efficiency OptimizedFalse
Lock Type4 points lock, 5 mm double-bar
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Sustainable PackagingNo
Warranty In Months18
Pep CodeENVPEP1105005EN
Pep Verification Date2024-10-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Environment Attributes Main
- Ambient Air Temperature For Storage
- -35-90 °C, -35-90 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 225.58072647244316
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Nema Degree Of ProtectionNEMA 5, NEMA 3, NEMA 3X, NEMA 12, NEMA 2, NEMA 13, NEMA 3S, NEMA 1, NEMA 3R
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1105005EN
Ip Degree Of ProtectionIP65 IEC 60529 completely sealed)
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1105005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
