Schneider Electric NSYMUPLA124G Horizontal Coupling Kit 1250 mm x 420 mm x 15 mm IP55, Polyester Frame

MPN: NSYMUPLA124G
PPN: SCH-NSYMUPLA124G
UNSPSC: 39121324

$115.74

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed for versatility and durability, this horizontal coupling kit is an essential accessory for the Thalassa PLA and PHD enclosures. With an impressive IP55 rating, it ensures robust protection against dust and water, making it suitable for a variety of applications. Crafted from high-quality polyester, the coupling frame measures 1250 mm in height, 420 mm in depth, and 15 mm in width, allowing for seamless integration between two enclosures. This product not only enhances the functionality of your installation but also maintains a sleek and professional appearance with its gray RAL 7035 finish. Perfect for multi-purpose use, this coupling kit is a reliable choice for any project requiring secure enclosure connections.

Features

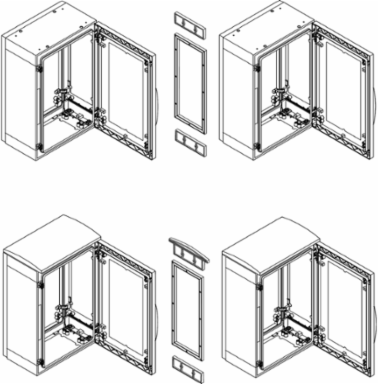

For coupling two enclosures side by side.
Coupling frame kit: Made up of a coupling kit and the fixings required for installation.
Trim kit: Made up of two frames for aesthetic fitting of the two coupled enclosures
Coupling kit widths: 15 mm, joining two enclosures mounted on ZA plinths
Ingress protection rating: IP55 at the coupling point

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Depth	420 mm

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 frame, fixing elements
Local Publishable Date	2026-04-13
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Mounting Location	side coupling of 2 enclosures
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	PanelSeT
Sustainable Packaging	No
Width Nominal	frame: 15 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Material	frame polyester
Mounting Support	ZA plinth
Product Or Component Type	coupling frame
Returnability	No
Height Nominal	nominal: 1250 mm
Accessory / Separate Part Category	coupling accessory
Customs Code	3926909989

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Environmental Disclosure	ENVPEP1105005EN
Ip Degree Of Protection	IP55
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1105005EN

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
