Schneider Electric NSYPLA1274TG PanelSeT PLA Polyester Enclosure, 1250x750x420mm, IP65, IK08

MPN: NSYPLA1274TG
PPN: SCH-NSYPLA1274TG
UNSPSC: 39121324

$2155.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

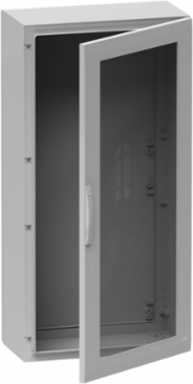

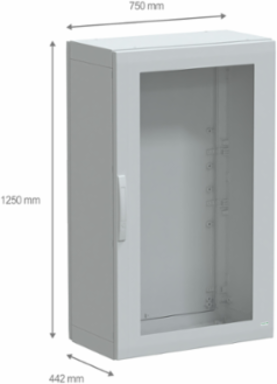

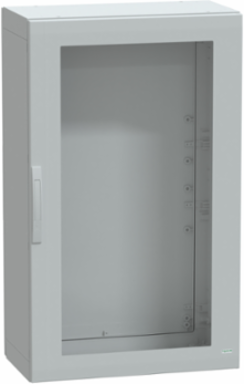

Thalassa PLA floor standing polyester enclosure with transparent door. 1250x 750x 320 mm. Sealed top and bottom part, assembled with side parts. 4 points lock, 5 mm double-bar insert. 1 door. Accesible front and rear. Reversible 120° opening. Polyester reinforced with fibreglass. Grey RAL 7035. IP65, IK08, NEMA (1,2,12,13). 960°C fire resistance.

Features

Durable polyester fiberglass construction for long-lasting use.
Versatile floor-standing design suitable for different applications.
Transparent front door opens up to 120° for easy equipment access.
Four-point lock with a 5mm double-bar insert ensures enhanced security.
Offers robust protection against fire, impacts, dust, and water.
Class II electrical insulation prevents electric shocks for added safety.
Can be stored in ambient air temperatures from -35°C to 90°C without affecting performance.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	47000 g

Physical Attributes

Enclosure Nominal Height	1250 mm, 1250 mm
Color	Gray RAL 7035)

Enclosure Nominal Width	750 mm, 750 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 top part, 1 bottom part2 side part, 1 rear panel, 1 door
Certificate Agency	DNV Marine, Veritas, UL/cUL listed
Carbon Footprint Of The End Of Life Phase C1 To C4	86 kg CO2 eq., 85.7090180114092
Carbon Footprint Of The Manufacturing Phase A1 To A3	171 kg CO2 eq., 170.74406538317757
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Opening Side	reversible 120 °)
Enclosure Mounting	floor-standing
Fire Resistance	960 °C IEC 62208
Material	polyester reinforced with fibreglass
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Removable Parts	door by hingesrear panel by fixing element
Software Version	v6.1
Total Lifecycle Carbon Footprint	366 kg CO2 eq.
Database Version	2023-02
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Door Type	front, transparent
Carbon Footprint Of The Distribution Phase A4	93.31016612983011, 93 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	15.833100275749636, 16 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-07-10
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Body Type	sealed top and bottom part assembled with side parts
Device Short Name	PLA
Electrical Insulation Class	class II
Energy Efficiency Optimized	False
Lock Type	4 points lock, 5 mm double-bar
Number Of Doors	1
Product Name	PanelSeT PLA
Range	PanelSeT
Returnability	No
Sustainable Packaging	No
Door Type 1 Door Type	transparent
Data Source	extrapolated product
Customs Code	9403704031
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	6

Environment Attributes Main

Ambient Air Temperature For Storage	-35-90 °C, -35-90 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	365.59634980016654
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Nema Degree Of Protection	NEMA 3X, NEMA 3, NEMA 3R, NEMA 12, NEMA 1, NEMA 5, NEMA 3S, NEMA 13, NEMA 2
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1105005EN
Ip Degree Of Protection	IP65 IEC 60529 completely sealed)
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1105005EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review
