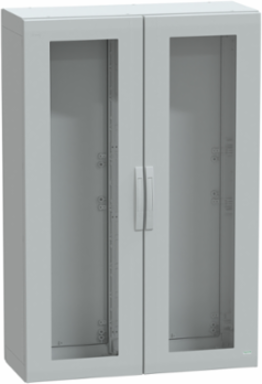

Schneider Electric NSYPLA15104TG Floor Standing Polyester Enclosure 1500x1000x420mm IP65 IK08
- MPN: NSYPLA15104TG
- PPN: SCH-NSYPLA15104TG
CAD
$2972.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for durability and versatility, the floor-standing polyester enclosure from Schneider Electric is an exemplary choice for various applications. With dimensions of 1500mm in height, 1000mm in width, and 420mm in depth, this enclosure is crafted from fiberglass-reinforced polyester, ensuring robust protection against environmental factors. It boasts an impressive IP65 rating, making it completely sealed against dust and water, while the IK08 rating indicates its resilience against impact, perfect for demanding settings.

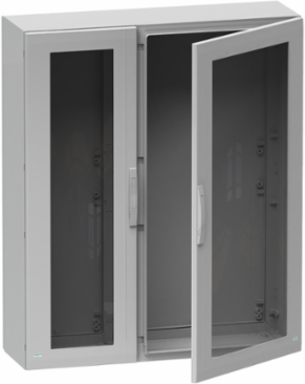

This enclosure features a transparent glazed door that allows for easy visibility of internal components and is equipped with a secure four-point locking mechanism for enhanced safety. Designed for front and rear accessibility, it meets stringent standards including IEC 62208 and UL 508 A, making it suitable for a wide range of electrical applications. With a carbon footprint of 536.73 Kg CO2 equivalent over its life cycle, this enclosure also reflects a commitment to environmental responsibility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Enclosure Nominal Height
- 1500 mm, 1500 mm
- Color
- Gray RAL 7035)
Enclosure Nominal Width1000 mm, 1000 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part2 side part, 2 door, 2 rear panel
- Certificate Agency
- UL/cUL listed, DNV Marine, Veritas
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 126 kg CO2 eq., 125.82813282526031
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 251 kg CO2 eq., 250.66681939232453
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Door Opening Side
- right and left 120 °)
- Enclosure Mounting
- floor-standing
- Fire Resistance
- 960 °C IEC 62208
- Material
- polyester reinforced with fibreglass
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- suitable enclosure
- Removable Parts
- door by hingesrear panel by fixing element
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 537 kg CO2 eq.
- Pep Code
- ENVPEP1105005EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9403704031
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Door Typefront, transparent
Carbon Footprint Of The Distribution Phase [A4]136.98726516932504, 137 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]23.244338702696275, 23 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-09-16
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Body Typesealed top and bottom part assembled with side parts
Device Short NamePLA
Electrical Insulation Classclass II
Energy Efficiency OptimizedFalse
Lock Type4 points lock, 5 mm double-bar
Number Of Doors2
Product NamePanelSeT PLA
RangePanelSeT
ReturnabilityNo
Sustainable PackagingNo
Door Type 1 Door Typetransparent
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Spain, ES
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %6
Package Weight(Lbs)69.000 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -35-90 °C, -35-90 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 536.7265560896062
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Nema Degree Of ProtectionNEMA 13, NEMA 12, NEMA 1, NEMA 2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1105005EN
Ip Degree Of ProtectionIP65 IEC 60529 completely sealed)
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1105005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
