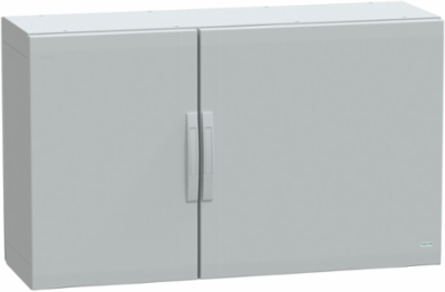

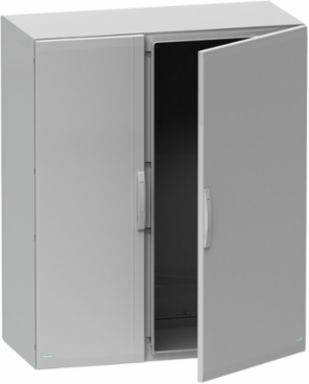

Schneider Electric NSYPLA7124G Floor Standing Polyester Enclosure, 750x1250x420mm, IP65, IK10

MPN: NSYPLA7124G
PPN: SCH-NSYPLA7124G
UNSPSC: 39121324

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$1841.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Floor Standing Polyester Enclosure from Schneider Electric is a robust solution designed for a variety of applications, ensuring optimal protection for your electrical components. Measuring 750x1250x420mm, this enclosure is constructed from polyester reinforced with fiberglass, providing a high level of durability and resistance to environmental factors. With an IP65 rating, it is completely sealed against dust and water ingress, while the IK10 rating ensures it can withstand significant impacts, making it ideal for demanding environments. This enclosure features a solid front door that can be opened from either side, allowing for easy access and operation. Additionally, it is equipped with a secure two-point lock system, enhancing safety for your electrical devices. Certified under various standards including IEC 62208 and UL 508 A, this enclosure is suitable for a wide range of installations, providing peace of mind for users in both industrial and commercial settings.

Features

Multi-purpose floor-standing unit for various applications.
Polyester reinforced with fiberglass for durability.
Doors open up to 120° for easy access.
Two-point lock and double-bar insert enhance security.
High resistance to fire and impacts for lasting protection.
Complete protection against dust and water to prevent damage.
Class II electrical insulation prevents electric shocks.
Suitable for a wide range of ambient air temperatures.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	37000 g

Physical Attributes

Enclosure Nominal Height	750 mm, 750 mm
Color	Gray RAL 7035)

Enclosure Nominal Width	1250 mm, 1250 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 top part, 1 bottom part2 side part, 2 door, 2 rear panel
Certificate Agency	Veritas, UL/cUL listed, DNV Marine
Carbon Footprint Of The End Of Life Phase C1 To C4	67 kg CO2 eq., 67.47305673238597
Carbon Footprint Of The Manufacturing Phase A1 To A3	134 kg CO2 eq., 134.41554083356533
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Opening Side	right and left 120 °)
Enclosure Mounting	floor-standing
Fire Resistance	960 °C IEC 62208
Material	polyester reinforced with fibreglass
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Removable Parts	door by hingesrear panel by fixing element
Software Version	v6.1
Total Lifecycle Carbon Footprint	288 kg CO2 eq.
Database Version	2023-02
Nbr. Of Units In Pkg.	1
Silicone Free	Yes
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	6

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Door Type	front, Solid
Carbon Footprint Of The Distribution Phase A4	73.45693929369604, 73 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	12.464355536228439, 12 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-09-16
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Body Type	sealed top and bottom part assembled with side parts
Device Short Name	PLA
Electrical Insulation Class	class II
Energy Efficiency Optimized	False
Lock Type	2 points lock, 5 mm double-bar
Number Of Doors	2
Product Name	PanelSeT PLA
Range	PanelSeT
Returnability	No
Sustainable Packaging	No
Door Type 1 Door Type	Solid
Data Source	extrapolated product
Customs Code	9403704031
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Ambient Air Temperature For Storage	-35-90 °C, -35-90 °C
Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Environmental Disclosure	ENVPEP1105005EN
Ip Degree Of Protection	IP65 IEC 60529 completely sealed)
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1105005EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Nema Degree Of Protection	NEMA 1, NEMA 2, NEMA 13, NEMA 12
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	287.80989239587575
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
