Schneider Electric NSYMUPLA54G Horizontal Coupling Kit for PLA Enclosure 500 mm x 420 mm - IP55
- MPN: NSYMUPLA54G
- PPN: SCH-NSYMUPLA54G
CAD
$98.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

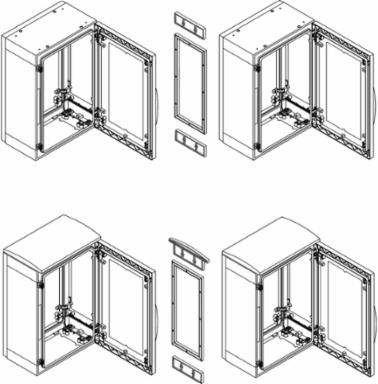

Designed for versatility and durability, this horizontal coupling kit is specifically engineered for the Thalassa PLA enclosure, providing a reliable solution for side coupling of two enclosures. With a nominal height of 500 mm and a depth of 420 mm, this coupling frame is constructed from robust polyester, ensuring it meets the IP55 degree of protection for reliable performance in various environments. The sleek gray finish (RAL 7035) complements the aesthetics of your installation while offering essential support for your multi-purpose applications. Ideal for use with the ZA plinth mounting support, this kit is a practical addition to your enclosure setup, enhancing both functionality and structural integrity.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Depth420 mm
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 frame, fixing elements
- Local Publishable Date
- 2026-04-13
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Mounting Location
- side coupling of 2 enclosures
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Warranty In Months
- 18
- Height Nominal
- nominal: 500 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Materialframe polyester
Mounting SupportZA plinth
Product Or Component Typecoupling frame
ReturnabilityNo
Accessory Separate Part Categorycoupling accessory
Pep CodeENVPEP1105005EN
Width Nominalframe: 15 mm
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP1105005EN
- Ip Degree Of Protection
- IP55
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1105005EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- coupling frame
ETIM
- ETIM 8
- EC002622
ETIM 9EC002622
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
