Schneider Electric NSYMUPLA73G Horizontal Coupling Frame for PanelSeT PLA Enclosures, 750 mm Height, IP55
Schneider Electric NSYMUPLA73G Horizontal Coupling Frame for PanelSeT PLA Enclosures, 750 mm Height, IP55
- MPN: NSYMUPLA73G
- PPN: SCH-NSYMUPLA73G
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$115.06/ EA
Description
Designed for versatility and durability, this horizontal coupling kit is an essential accessory for the Thalassa enclosure range by Schneider Electric. With a robust frame made from polyester, it ensures a secure side coupling between two enclosures, enhancing your setup's functionality. Measuring 750 mm in height and 320 mm in depth, this coupling frame offers an IP55 degree of protection, making it suitable for various multi-purpose applications while maintaining a sleek gray finish (RAL 7035). Ideal for those looking to optimize their enclosure systems, this coupling kit combines practical design with reliable performance, ensuring that your installations are both efficient and aesthetically pleasing.
Features

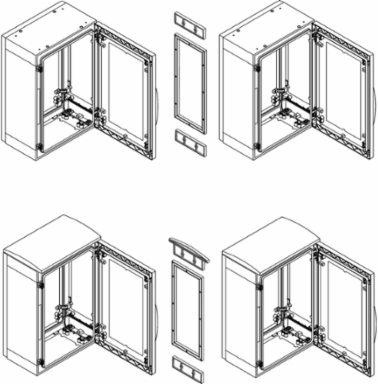

- For coupling two enclosures side by side.
- Coupling frame kit: Made up of a coupling kit and the fixings required for installation.
- Trim kit: Made up of two frames for aesthetic fitting of the two coupled enclosures
- Coupling kit widths: 15 mm, joining two enclosures mounted on ZA plinths
- Ingress protection rating: IP55 at the coupling point
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 frame, fixing elements
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Material
- frame polyester
- Mounting Support
- ZA plinth
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Medium Desc
- Horizontal coupling kit for PLA enclosure H750xD320 mm - 15 mm - IP55 coupling
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Mounting Locationside coupling of 2 enclosures
Package Weight Lbs860.000 g
Product Or Component Typecoupling frame
ReturnabilityNo
Accessory Separate Part Category2coupling accessory
Stocking FlagY
Pep CodeENVPEP1105005EN
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1105005EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
IP Degree Of ProtectionIP55
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1105005EN
General Attributes
- Product Or Component Type
- coupling frame
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 29.53 in
- Depth
- 320 mm
Width0.59 in
