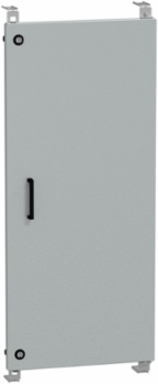

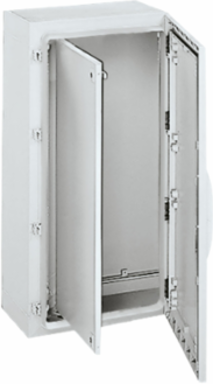

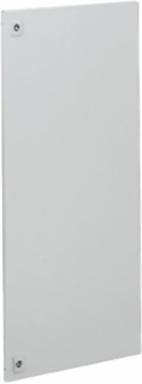

Schneider Electric NSYPAPLA105G Internal Door for Thalassa PLA Enclosure, 898 mm Height, 398 mm Width, Aluminum

MPN: NSYPAPLA105G
PPN: SCH-NSYPAPLA105G
UNSPSC: 39121324

$302.58

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Designed to enhance the functionality of your Thalassa PLA enclosures, this internal door offers a robust and practical solution for various applications. Crafted from durable aluminum, it features a sleek gray finish (RAL 7035) and is designed for left-side opening, ensuring easy access while maintaining security with its double bar lock system. With dimensions of 898 mm in height and 398 mm in width, this door is not only versatile but also compatible with a range of enclosure depths up to 30 mm, making it an ideal choice for multi-purpose use in industrial settings.

Features

Designed for direct installation in enclosures with sealed bottom part. In the enclosures with the bottom part open
Performed by ordering the necessary adapter plates, refNSYPTZ.
Two depthwise mounting positions (two positions for depthwise installation) according to the chosen M8 impressions
Lock with 5-mm double-bar inserts.
Not compatible with: Modular distribution chassis, 19" chassis, cable entry plate and door retainer,ref NSYRETPLAU.
Material: Aluminum
Color: RAL 7035 grey
on the top and bottom parts of the enclosure, for fixing.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain
Width	15.67 in

Height	35.35 in

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 door, fixing elements, M8 brass inserts
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Door Opening Side	left 110 °)
Energy Efficiency Optimized	False
Material	aluminium
Number Of Locks	2
Product Or Component Type	door
Returnability	No
Height Nominal	898 mm
Width Nominal	398 mm
Accessory / Separate Part Category	enclosure accessory
Customs Code	9403999045
Warranty In Months	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Enclosure Nominal Dimensions	-, -
Local Publishable Date	2026-02-10
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Door Type	internal plain
Lock Type	lock 5 mm double bar
Mounting Location	front side
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	PanelSeT
Sustainable Packaging	No
Height Useful	898 mm
Width Real	398 mm
Nbr. Of Units In Pkg.	1
Silicone Free	Yes

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Silicon Free	Yes
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1105005EN

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1105005EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
