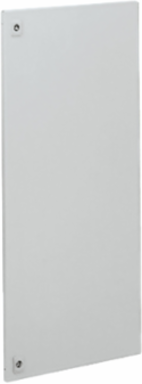

Schneider Electric NSYPAPLA157G Internal Aluminium Door for PanelSeT PLA Enclosure 1398x648 mm, Multi-Purpose
Schneider Electric NSYPAPLA157G Internal Aluminium Door for PanelSeT PLA Enclosure 1398x648 mm, Multi-Purpose
- MPN: NSYPAPLA157G
- PPN: SCH-NSYPAPLA157G
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$434.42/ EA
Description

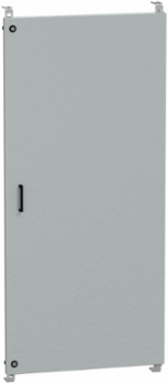

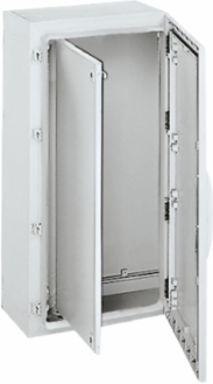

Internal door in Aluminium for Thalassa PLA enclosure. 1398 x 648 mm. Multi-purpose. Door type internal plain lock 5 mm double bar. Available depth between enclosure door 30mm.
Features
- Designed for direct installation in enclosures with sealed bottom part. In the enclosures with the bottom part open
- Performed by ordering the necessary adapter plates, refNSYPTZ.
- Two depthwise mounting positions (two positions for depthwise installation) according to the chosen M8 impressions
- Lock with 5-mm double-bar inserts.
- Not compatible with: Modular distribution chassis, 19" chassis, cable entry plate and door retainer,ref NSYRETPLAU.
- Material: Aluminum
- Color: RAL 7035 grey
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 door, fixing elements, M8 brass inserts
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Door Type
- internal plain
- Lock Type
- lock 5 mm double bar
- Mounting Location
- front side
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Medium Desc
- internal door for PLA enclosure H1500xW750 mm
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2026-02-10
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Door Opening Sideleft 110 °)
Energy Efficiency OptimizedFalse
Materialaluminium
Package Weight Lbs7.000 kg
Product Or Component Typedoor
ReturnabilityNo
Accessory Separate Part Category2enclosure accessory
Stocking FlagY
Pep CodeENVPEP1105005EN
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1105005EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1105005EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- door
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
