Schneider Electric

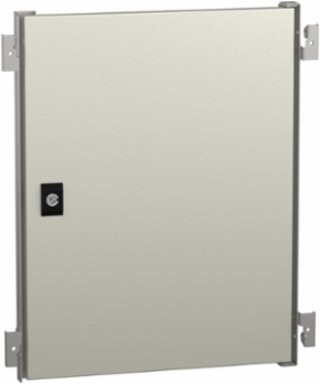

Schneider Electric NSYPIN54 Internal door for Spacial WM encl. H500xW400 steel, RAL7035.Adjustable in depth

Internal door for Spacial WM encl. H500xW400 steel, RAL7035.Adjustable in depth
  • MPN: NSYPIN54
  • PPN: SCH-NSYPIN54

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$169.77/ EA

    Description

    Internal door for Spacial WM encl. H500xW400 steel, RAL7035.Adjustable in depth

    Specifications

    Complementary

    Adjustment
    pitch 25 mm (on step slides)
    Width
    nominal 400 mm
    Material
    door sheet steel
    Maximum Load
    30 kg/m²
    Lock Type
    lock 3 mm double bar
    Net Weight
    2.8 kg
    Number Of Locks1
    Heightnominal 500 mm
    Surface Finishpolyester powder
    Colourall faces grey RAL 7035)
    Door Typeinternal plain
    Door Opening Sidereversible

    Offer Sustainability

    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP100104EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    Specifications

    Range Compatibility
    Spacial Spacial CRN || Spacial Spacial S3D || Spacial Spacial S3X
    Product Or Component Type
    door
    Device Application
    multi-purpose
    Mounting Location
    step slide || front side
    Accessory / Separate Part Categoryenclosure accessory
    Device Composition1 door || 4 fixing brackets || 2 mounting uprights
    RangeSpacial

    Contractual warranty

    Warranty
    18 months
