Insulating Modular Box IP66 54x54x18cm, Wall Mounted, Grey RAL 7035
Insulating Modular Box IP66 54x54x18cm, Wall Mounted, Grey RAL 7035
Insulating Modular Box IP66 54x54x18cm, Wall Mounted, Grey RAL 7035
Schneider Electric

Schneider Electric NSYPLS5454G Insulating Modular Box IP66 54x54x18cm, Wall Mounted, Grey RAL 7035

  • MPN: NSYPLS5454G
  • PPN: SCH-NSYPLS5454G

CAD

$300.71

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

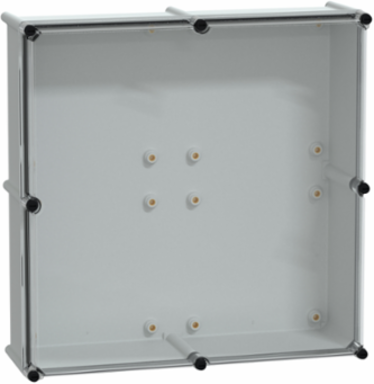

Thalassa PLS box polyester rear with transparent PC cover. 540 x 540 x 230 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Spain

Physical Attributes

Color
body Gray RAL 7035)

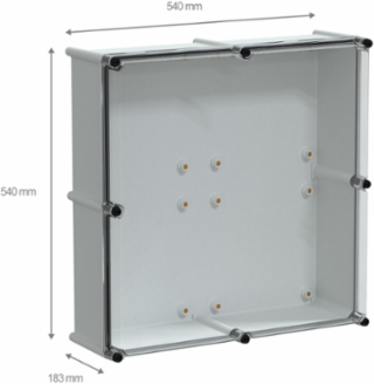

Enclosure Nominal Width
540 mm
Enclosure Nominal Height540 mm

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
1 cover on enclosure, 1 rear part on enclosure, locking screws
Carbon Footprint Of The End-of-life Phase [C1 To C4]
13 kg CO2 eq., 13.370335714360165
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
36 kg CO2 eq., 36.40830768366135
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
7
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Device Application
multi-purpose
Electrical Insulation Class
class II
Energy Efficiency Optimized
False
Lock Type
slot screw
Product Availability
Non-Stock - Not normally stocked in distribution facility
Product Or Component Type
insulating modular box
Removable Parts
cover locking screw
Software Version
v6.1
Total Lifecycle Carbon Footprint
63 kg CO2 eq.
Pep Code
ENVPEP1107004EN
Pep Verification Date
2024-08-01
Psr Version
PSR-0005-ed3.1-EN-2023 12 08
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate Agency
UL
Package Weight(Lbs)
6.220 kg
Warranty (In Months)
18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]12.348707092075388, 12 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.8107675340352848, 0.8 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-12-09
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2051
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Body Typeone piece moulded
Device Short NamePLS
Enclosure Mountingwall mounted
Fire Resistance960 °C IEC 62208
MaterialCover polycarbonaterear polyester reinforced with fibreglass
Product NamePanelSeT PLS
RangePanelSeT
ReturnabilityNo
Sustainable PackagingNo
Type Of Front Coverlow transparent cover
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Spain, ES
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %4
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

Ambient Air Temperature For Storage
-30-70 °C, -30-70 °C
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Environmental Disclosure
ENVPEP1107004EN
Ip Degree Of Protection
IP66 IEC 60529
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP1107004EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Take BackNo
China Rohs RegulationX
Carbon Footprint62.93811802413219
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-08-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
insulating modular box

ETIM

ETIM 8
EC000058
ETIM 9EC000058

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
