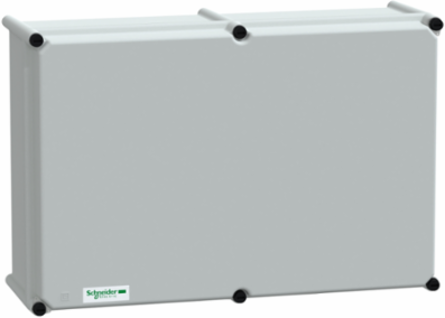

Schneider Electric NSYPLSP3654G PLS Box, 36x54x18cm, IP66, Fiberglass Reinforced Polyester, Wall Mounted
- MPN: NSYPLSP3654G
- PPN: SCH-NSYPLSP3654G
- UNSPSC: 39121324
CAD
$255.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

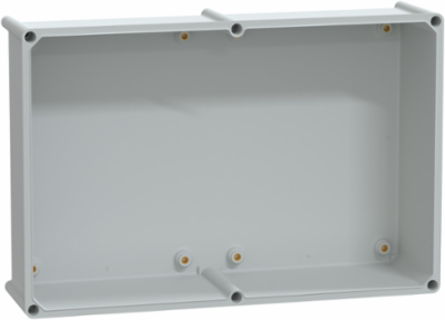

Thalassa PLS box polyester rear with opaque polyester cover. 360 x 540 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. Low plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear and cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.
Features

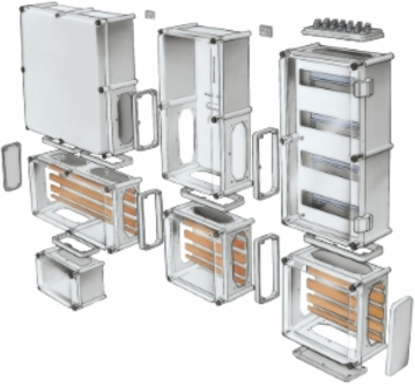

- Modular design allowing flexible configuration
- Ideal for scalable industrial installations
- Robust protection against dust, water and harsh industrial conditions
- Class II electrical insulation for safe operation
- Polyester opaque cover which provides protection against UV
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|
| Weight | 4640 g |
|---|
Physical Attributes
| Color | body Gray RAL 7035) |
|---|---|

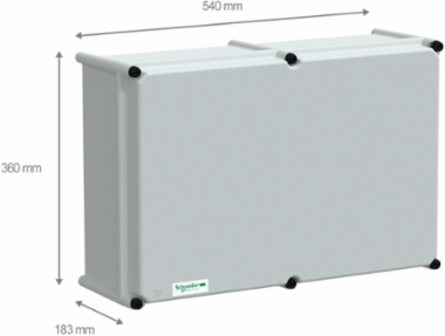

| Enclosure Nominal Width | 540 mm |
| Enclosure Nominal Height | 360 mm |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 cover on enclosure, 1 rear part on enclosure, locking screws |
| Carbon Footprint Of The Distribution Phase A4 | 9.211897251966205, 9 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.6048169385729456, 0.6 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-12-09 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2051 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Body Type | one piece moulded |
| Device Short Name | PLS |
| Enclosure Mounting | wall mounted |
| Fire Resistance | 960 °C IEC 62208 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | insulating modular box |
| Removable Parts | cover locking screw |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 47 kg CO2 eq. |
| Database Version | 2023-02 |
| Certificate Agency | UL |
| Customs Code | 3926909989 |
| Functional Unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 4 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Material | rear polyester reinforced with fibreglass, Cover polyester reinforced with fibreglass |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 10 kg CO2 eq., 9.974012494313692 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 27 kg CO2 eq., 27.159895120930653 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | multi-purpose |
| Electrical Insulation Class | class II |
| Energy Efficiency Optimized | False |
| Lock Type | slot screw |
| Product Name | PanelSeT PLS |
| Range | PanelSeT |
| Returnability | No |
| Sustainable Packaging | No |
| Type Of Front Cover | low plain cover |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -30-70 °C, -30-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1107004EN |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1107004EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 46.95062180578349 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-08-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | insulating modular box |
|---|
ETIM
| ETIM 8 | EC000058 |
|---|---|
| ETIM 10 | EC000058 |
| ETIM 9 | EC000058 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
