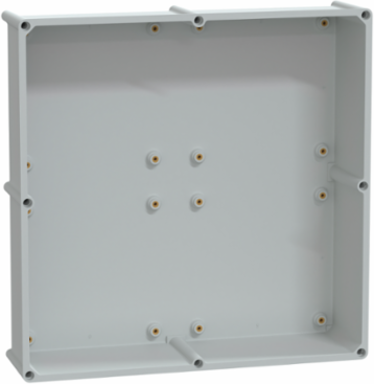

Schneider Electric NSYFPLS5454G PLS Box Rear Part, 54x54x13.5cm, Polyester, IP66, IK09
Schneider Electric NSYFPLS5454G PLS Box Rear Part, 54x54x13.5cm, Polyester, IP66, IK09
- MPN: NSYFPLS5454G
- PPN: SCH-NSYFPLS5454G
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$150.18/ EA
Description
Constructed from high-quality polyester reinforced with fiberglass, this rear part of the Thalassa PLS box is designed for durability and reliability in various environments. With an impressive temperature range for storage from -30 to 70 °C and a fire resistance rating of 960 °C, it ensures optimal protection for your devices. This one-piece molded enclosure, with dimensions of 54x54x13.5 cm, is wall-mounted and offers excellent electrical insulation classified as Class II, making it suitable for multi-purpose applications. Additionally, it meets stringent standards including IEC 62208 and NEMA classifications, providing peace of mind with its robust IK09 impact protection and IP66 ingress rating.
Specifications
Physical Attributes
- Color
- body Gray RAL 7035)
- Enclosure Nominal Width
- 540 mm
Enclosure Nominal Height540 mm
Conformance Attributes
- Standards
- IEC 62208, NEMA classification 13, NEMA 4X
Product CertificationsUL
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Body Type
- one piece moulded
- Device Composition
- 1 rear part on enclosure
- Electrical Insulation Class
- class II
- Fire Resistance
- 960 °C IEC 62208
- Package Weight Lbs
- 3.496 kg
- Product Or Component Type
- insulating modular rear
- Returnability
- No
- Type Of Front Cover
- without
- Stocking Flag
- Y
- Pep Code
- ENVPEP1107004EN
- Product Name
- PanelSeT PLS
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2025-12-11
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Applicationmulti-purpose
Device Short NamePLS
Enclosure Mountingwall mounted
Materialpolyester reinforced with fibreglass
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Medium DescPolyester rear part of PLS box 54x54x13.5cm
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Ambient Air Temperature For Storage
- -30-70 °C
- IP Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1107004EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1107004EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- insulating modular rear
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
