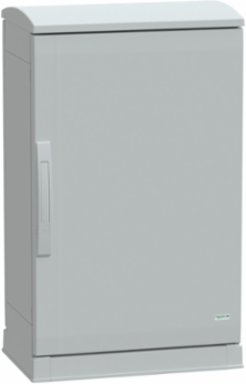

Schneider Electric NSYPLAZT753G PanelSeT PLA Polyester Enclosure, 750x500x320mm, IP44, IK10

MPN: NSYPLAZT753G
PPN: SCH-NSYPLAZT753G
UNSPSC: 39121324

$1320.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

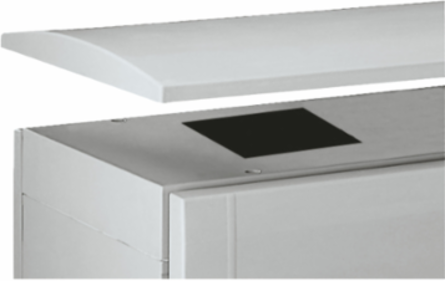

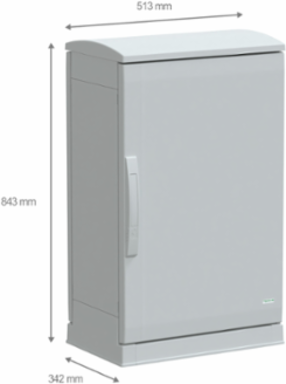

Designed for durability and versatility, the floor-standing polyester enclosure from Schneider Electric is an ideal solution for various electrical applications. Constructed from polyester reinforced with fiberglass, this enclosure offers robust protection with an IP44 rating, ensuring reliable performance even in challenging environments. With dimensions of 750x500x320 mm, it features a solid front door that is reversible for flexible installation, along with a ventilated canopy for optimal airflow. The enclosure meets rigorous standards, including IK10 for impact resistance and fire resistance up to 960 C, making it suitable for a wide range of settings. Whether you need a secure housing for electrical components or a multi-purpose enclosure, this product combines practicality with a thoughtful design to enhance your operational efficiency.

Features

Versatile floor-standing enclosure for multiple applications.
Durable polyester reinforced with fiberglass construction.

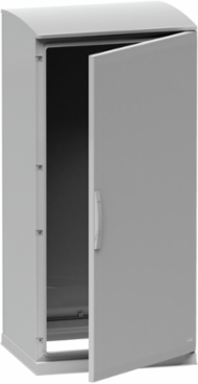

Easy access with 180° opening front door and removable rear panel.

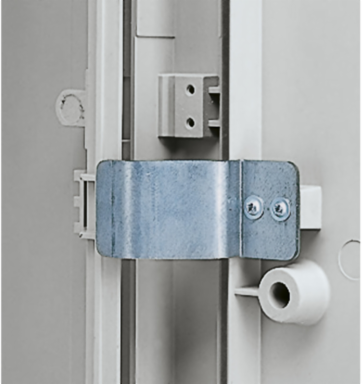

Enhanced security with a two-point handle lock and double-bar insert.
Excellent protection against fire, dust, and water to ensure longevity.
Prevents electric shocks with Class II electrical insulation for safety.
Can be used in temperatures ranging from -35 to 90°C without performance loss.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Weight	20875 g

Physical Attributes

Enclosure Nominal Height	750 mm, 750 mm
Color	Gray RAL 7035)

Enclosure Nominal Width	500 mm, 500 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 top part, 1 bottom part2 side part, 1 rear panel, 1 door, 1 canopy, 1 plinth
Removable Parts	door by hingesrear panel by fixing element, canopy by fixing element
Carbon Footprint Of The End Of Life Phase C1 To C4	38 kg CO2 eq., 38.067569169961
Carbon Footprint Of The Manufacturing Phase A1 To A3	76 kg CO2 eq., 75.83579499731557
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Opening Side	reversible 180 °)
Enclosure Mounting	floor-standing
Fire Resistance	960 °C IEC 62208
Material	polyester reinforced with fibreglass
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	suitable enclosure
Returnability	No
Sustainable Packaging	No
Door Type 1 Door Type	Solid
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Door Type	front, Solid
Carbon Footprint Of The Distribution Phase A4	41.44361102042986, 41 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	7.032254643750504, 7 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-09-16
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Body Type	open top and bottom part assembled with side parts
Device Short Name	PLAZT
Electrical Insulation Class	class II
Energy Efficiency Optimized	False
Lock Type	2 points handle lock, 5 mm double-bar
Number Of Doors	1
Product Name	PanelSeT PLA
Range	PanelSeT
Software Version	v6.1
Total Lifecycle Carbon Footprint	162 kg CO2 eq.
Database Version	2023-02
Certificate Agency	Veritas
Customs Code	9403704031
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	6

Environment Attributes Main

Ambient Air Temperature For Storage	-35-90 °C, -35-90 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1105005EN
Ip Degree Of Protection	IP44 IEC 60529 with plinth type open bottom part and ventilated canopy)
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1105005EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
China Rohs Regulation	X
Carbon Footprint	162.37922983145694
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
