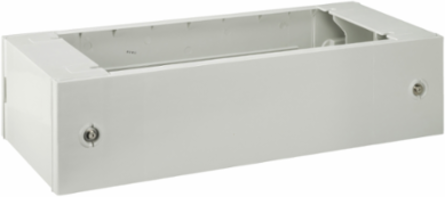

Schneider Electric NSYZM263G Polyester glassreinforced plinth for encl. PLM86 front opening IP44-IK10 RAL7035
- MPN: NSYZM263G
- PPN: SCH-NSYZM263G
CAD
$425.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

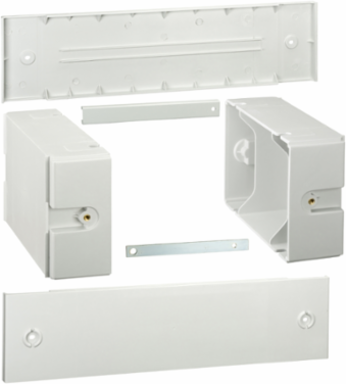

Plinth to be used with PanelSeT PLM enclosures. The plinth is to be used in multi-purpose applications. The width is 556mm. The height is 200mm. The depth is 302mm. The kit is made of fixing elements, 2 front panels and 2 side parts. The product is made of grey Material : Plastic. (RAL 7035). Ingress protection rating is IP44. Mechanical protection rating is IK10.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 21.89 in
Height7.87 in
Depth302 mm
Physical Attributes
- Color
- plinth Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements2 front panel, 2 side part
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Height Nominal
- 200 mm
- Width Nominal
- 556 mm
- Accessory / Separate Part Category
- enclosure accessory
- Package Weight(Lbs)
- 6.930 kg
- Take-back
- No
- Customs Code
- 3926909989
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2026-04-13
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2041
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Fixing Modeby screws - on side parts
Product Or Component Typeplinth
ReturnabilityNo
Pep CodeENVPEP1101018EN
Height Useful200 mm
Width Real556 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1101018EN
Ip Degree Of ProtectionIP44
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1101018EN
General Attributes
- Product Or Component Type
- plinth
ETIM
- ETIM 8
- EC000721
ETIM 9EC000721
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
