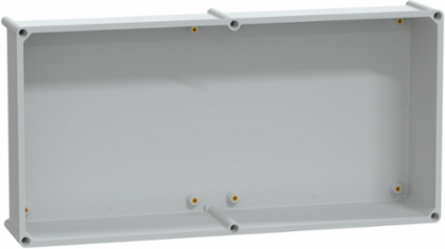

Schneider Electric NSYFPLS3672G Polyester Rear Part for PLS Box 36x72x13.5cm, IP66, Fire Resistant 960°C
- MPN: NSYFPLS3672G
- PPN: SCH-NSYFPLS3672G
CAD
$153.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Crafted by Schneider Electric, this polyester rear part of the Thalassa PLS box is designed for durability and versatility in various applications. Measuring 36 cm in height, 72 cm in width, and 13.5 cm in depth, it features a robust one-piece molded body reinforced with fiberglass, ensuring both structural integrity and reliable electrical insulation with a Class II rating. With an impressive IP66 rating, this enclosure is protected against dust and water ingress, making it suitable for demanding environments with ambient temperatures ranging from -30 to 70 °C. Its wall-mounted design and fire resistance up to 960 °C further enhance its suitability for multi-purpose use, while the gray RAL 7035 color provides a neutral aesthetic that blends seamlessly into various settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Color
- body Gray RAL 7035)
- Enclosure Nominal Width
- 720 mm
Enclosure Nominal Height360 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Device Short Name
- PLS
- Enclosure Mounting
- wall mounted
- Material
- polyester reinforced with fibreglass
- Product Name
- PanelSeT PLS
- Range
- PanelSeT
- Sustainable Packaging
- No
- Warranty In Months
- 18
- Certificate Agency
- UL
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2026-04-13
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2051
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Body Typeone piece moulded
Device Composition1 rear part on enclosure
Electrical Insulation Classclass II
Fire Resistance960 °C IEC 62208
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeinsulating modular rear
ReturnabilityNo
Type Of Front Coverwithout
Pep CodeENVPEP1107004EN
Environment Attributes Main
- Ambient Air Temperature For Storage
- -30-70 °C, -30-70 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
China Rohs RegulationX
Environmental DisclosureENVPEP1107004EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1107004EN
General Attributes
- Product Or Component Type
- insulating modular rear
ETIM
- ETIM 8
- EC000058
ETIM 9EC000058
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
