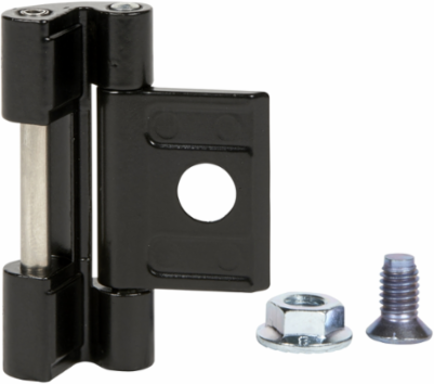

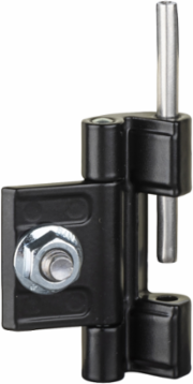

Schneider Electric NSYAEDH180S3D Door Hinges with 180° Opening, Max Load 20 kg/m², Weight 0.052 kg
Schneider Electric NSYAEDH180S3D Door Hinges with 180° Opening, Max Load 20 kg/m², Weight 0.052 kg
- MPN: NSYAEDH180S3D
- PPN: SCH-NSYAEDH180S3D
- UNSPSC: 39121321
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$15.83/ EA
Description
Designed for the PanelSeT S3D enclosure, these door hinges offer a robust solution for a variety of applications, allowing for a full 180° door opening. Constructed from durable materials, including an aluminum pin and a zamak hinge body, they can support a maximum load of 20 kg/m², ensuring reliable performance in demanding environments. Weighing only 0.052 kg, these hinges are easy to install with screws directly onto the enclosure body, making them a practical choice for any multi-purpose setup. With a commitment to quality, Schneider Electric provides an 18-month warranty, underscoring the dependability of this essential component.
Features
- 180° hinge enables full door access.
- Zamak and aluminium construction for strength.
- Supports up to 20 kg/m² load.
- Easy screw mounting on enclosure body.
Specifications
Complementary Attributes
- Maximum Load
- 20 kg/m²
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 1 x pin, 1 x hinge
- Material
- pin aluminium, hinge body zamak
- Local Publishable Date
- 2025-10-18
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Mounting Location
- enclosure
- Package Weight Lbs
- 50.000 g
- Product Or Component Type
- hinge
- Range
- PanelSeT
- Sustainable Packaging
- No
- Stocking Flag
- Y
- Pep Code
- ENVPEP1001004EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Fixing Modeby screws - on enclosure body
Operating Angle180 °
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Medium DescDoor hinges for PanelSeT S3D enclosure, door opening: 180°.
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1001004EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- hinge
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
