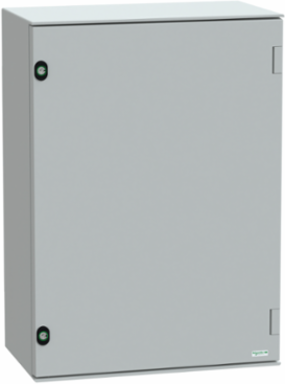

Schneider Electric NSYPLM75BG Thalassa PLM Wall-Mounted Polyester Enclosure, 747x536x300mm, IP66, IK10, Gray RAL 7035
- MPN: NSYPLM75BG
- PPN: SCH-NSYPLM75BG
CAD
$675.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

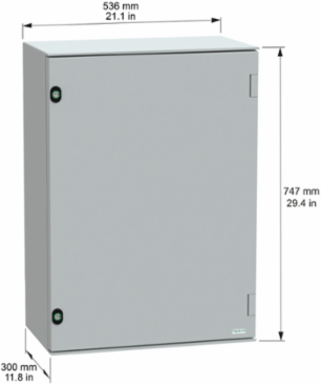

Designed for durability and versatility, this wall-mounted polyester enclosure from Schneider Electric is part of the Thalassa range, featuring a robust plain door and a bakelite mounting plate. With dimensions of 747 mm in height, 536 mm in width, and 300 mm in depth, it offers ample space for multi-purpose applications while ensuring superior protection with an IP66 rating against dust and water ingress. Built from polyester reinforced with fiberglass, this enclosure boasts impressive fire resistance up to 960 C and an IK10 rating for impact protection, making it ideal for demanding environments. Its environmentally conscious design includes a minimum of 37% recycled plastic content, and it is certified for safety and reliability with UL standards. Perfect for a variety of installations, this enclosure combines functionality with a sleek gray finish (RAL 7035) to seamlessly integrate into any setting.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Physical Attributes
- Enclosure Nominal Height
- 747 mm, 747 mm
- Color
- Gray RAL 7035)
Enclosure Nominal Width536 mm, 536 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 door, 1 mounting plate2 lock
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 33 kg CO2 eq., 33.3029403825386
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 58 kg CO2 eq., 57.86737194845354
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Door Type
- Solid
- Enclosure Mounting
- wall mounted
- Fire Resistance
- 960 °C IEC 62208
- Material
- polyester reinforced with fibreglass
- Number Of Locks
- 2
- Product Or Component Type
- compact enclosure
- Removable Parts
- door by hingesmounting plate by fixing element
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 128 kg CO2 eq.
- Pep Code
- ENVPEP2405006EN
- Pep Verification Date
- 2024-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]32.49973233075145, 32 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]3.908156839221966, 4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-07-10
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2041
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Plastic Content37 %
Device Short NamePLM
Electrical Insulation Classclass II
Energy Efficiency OptimizedFalse
Lock Type3 mm double-bar lock
Mounting Plate Descriptionplain bakelite
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
ReturnabilityNo
Sustainable PackagingNo
Material 5 Materialpolyester reinforced with fibreglass
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Spain, ES
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate AgencyUL
Package Weight(Lbs)16.370 kg
Take-backNo
Customs Code9403704031
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-80 °C, -40-80 °C
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Carbon Footprint
- 127.57820150096555
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-12-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Silicon FreeYes
Environmental DisclosureENVPEP2405006EN
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2405006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
