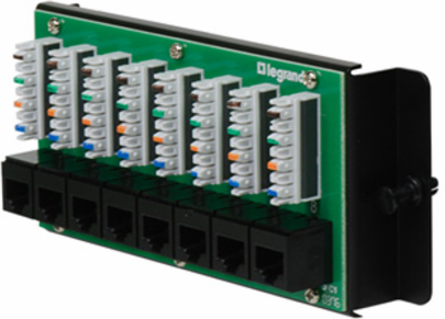

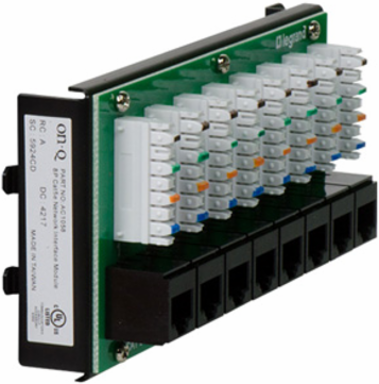

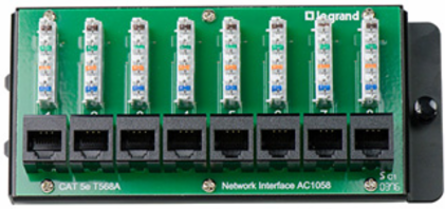

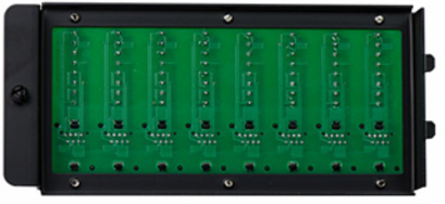

Legrand AC1058 8 Port Cat5e Network Interface Module, 6.41 Inch Height, 2.9 Inch Width, T568A Wiring
- MPN: AC1058
- UPC: 804428432685
- PPN: P-S-AC1058
CAD
$57.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The AC1058, 8 Port Cat5e Network Interface Module is designed to connect your Router / Switch to wired networking locations throughout the home. Eight front-mounted 110-IDC punchdown terminals and RJ-45 connectors allow for easy configuration of the home network with patch panel simplicity. The network interface module is UL listed and exceeds TIA/EIA 568-C.2 industry standards.
Features
- Supports punchdown termination of up to 8 Cat5e data lines for easy interface with the home network
- Provides connectivity for ethernet connected devices like computers, TV's, gaming systems and network streaming devices
- Easy access to front mounted 110-IDC Punchdown terminals and RJ45 Jacks
- Module mounts in all On-Q structured wiring enclosures
- Supports termination using T568A wiring standard, is UL listed and exceeds TIA/EIA 568-C.2 industry standards
Specifications
Technical Information
| Mounting | Tabs / Plungers & Grommets |
|---|---|
| Supported Standards | TIA/EIA 568-C.2 |
| Operating Temperature (Celsius) | 0°C - 50°C |
|---|
Dimensions
| Depth (Metric) | 38.1mm |
|---|---|
| Height (Metric) | 161.9mm |
| Width (Metric) | 69.9mm |
| Overall Dimensions (Metric) | 161.9mm H x 69.9mm W x 38.1mm D |
| Primary Packaging Weight (Metric) | 0.200kg |
| Depth (US) | 1.5" |
|---|---|
| Height (US) | 6.41" |
| Width (US) | 2.9" |
| Overall Dimensions (US) | 6.41" H x 2.9" W x 1.5" D |
| Product Weight (US) | 0.363lbs |
Construction Information
| Material 4 | Metal Bracket with Printed Circuit Board |
|---|
| Installation Location | On-Q Enclosure (Metal & Plastic) |
|---|
General Info
| Cable Type | Cat 5e |
|---|---|
| Number Of Ports | 8 |
| Termination | 110 IDC Punchdown / RJ45 Connectors - T568A Wiring |
| Color | Black/Green |
|---|---|
| Performance Category | Cat5e |
Listing Agencies/Third Party Certifications
| UL Standard | CAN/CSA C22.2 No. 182.4, Plugs, Receptacles and Connectors for Communication Systems; UL 1863, Communications-Circuit Accessories |
|---|
