Schneider Electric REL52812 Easergy P3 Analog Temperature Module 12 RTD Inputs 24-230V
- MPN: REL52812
- PPN: SCH-REL52812
CAD
$931.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

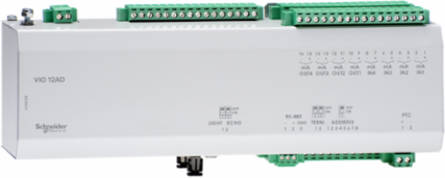

This analog temperature module for easergy P3 is used to connect temperature sensors from the field to the Easergy P3 devices using a communication port RS485 by twist-pair or fiber optic. The module accepts supply voltage ranging from 24 to 230VAC/VDC. The degree of protection is IP20. The module can be mounted using DIN-rail.
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 24...230 V AC/DC |
|---|---|
| Mounting Support | wall mounted || 35 mm symmetrical DIN rail |
| Range Of Product | Easergy P3 |
|---|---|
| Product Or Component Type | analog temperature module |
Complementary
| Communication Port Support | serial link |
|---|---|
| Number Of Inputs | 12 RTD temperature sensor) |
| Temperature Probe Type | Pt 100, Ni 100, Ni 120, Cu 10 |
|---|
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Rohs Exemption Information | Yes |
| Environmental Disclosure | ENVPEP1411007 |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Circularity Profile | ENVEOLI1411007 |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
Environment
| Ambient Air Temperature For Operation | 0-55 °C |
|---|
