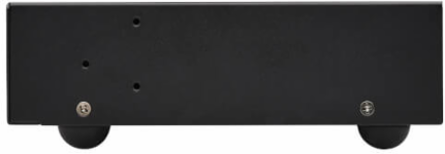

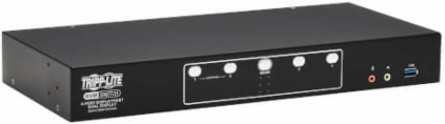

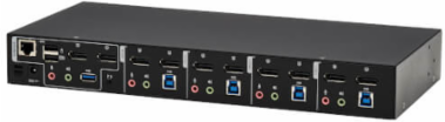

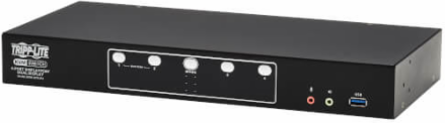

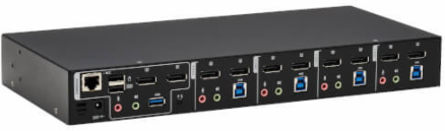

Tripp Lite B006DP2UA4 KVM Switch, 4-Port, DisplayPort Dual-Display, USB 3.2 Gen 1, 4K 60 Hz, HDCP 2.2, TAA
- MPN: B006DP2UA4
- UPC: 037332265951
- PPN: TRP-B006-DP2UA4
CAD
$1484.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
4-Port DisplayPort Dual-Display KVM Switch - 4K 60 Hz, USB 3.2 Gen 1, HDCP 2.2, USB Sharing, TAA
Features

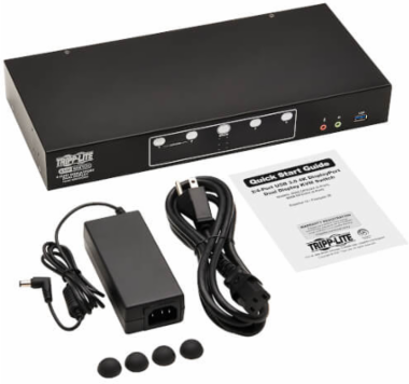

- External power supply included (Input: 100-240V, 50/60 Hz, 1.2A; Output: 12V, 3.33A)

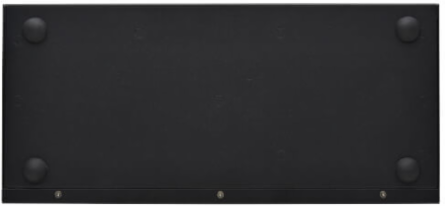

- Includes (4) rubber foot pads
Documentation & Downloads
Specifications
Dimensions
| Max CPU | 4 |
|---|---|
| Number of Users | 1 |
| Unit Weight | 3.52 lb |
| Computer/Server Ports | DP, USB, 3.5mm Audio Jack (Audio), 3.5mm Audio Jack (Mic) |
| Side A - Connector 2 | (4) USB B (Female) |
| Side B - Connector 1 | (2) DisplayPort (Female) |
| Side B - Connector 3 | (4) 3.5mm (Female) |
| Port Selection | Hotkey; Mouse; Pushbutton; Remote Selector |
| Daisy-chainable or Cascadable | Daisy chainable |
| Number of Monitors Supported | 2 |
|---|---|
| Unit Dimensions | 13.189 x 1.732 x 6.060 in |
| PC/Server Connections | DisplayPort |
| Side A - Connector 1 | (8) DisplayPort (Female) |
| Side A - Connector 3 | (8) 3.5mm (Female) |
| Side B - Connector 2 | (4) USB A (Female) |
| Side B - Connector 4 | RJ45 (Female) |
| Port Control | Push Buttons, Hotkeys, OSD Mouse Switching |
| LED Indicators | Solid White (Current KVM/Audio/USB Link); Half-lit White (Connected); Dimmed White (Not focused) |
Material
| Color | Black |
|---|
| Material of Construction | Metal |
|---|
Compliance
| Recommended Category Cable | Cat6/6a |
|---|
Reference
| Product Warranty Period | 3-year limited warranty |
|---|
Performance
| Max Supported Video Resolution | 4K UHD @ 60Hz (3840 x 2160); 4K DCI @ 60Hz (4096 x 2160) |
|---|---|
| Audio Specification | 2.1 Surround Sound |
| HDCP Specification | 2.2 |
| Extended Mode | Yes |
| AC Power Adapter Input | 100-240V / 50/60Hz / 1.2A |
| AC Power Adapter Plug | IEC-320-C14 |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Technology | DisplayPort; Stereo Audio; USB 2.0 (High Speed); USB 3.x |
|---|---|
| DisplayPort Specification | 1.2 |
| USB Specification | USB 3.2 Gen 1 (up to 5 Gbps) |
| Power Consumption | 6.13 W |
| AC Power Adapter Output | 12V / 3.33A |
| Operating Temperature Range | 32° to 122°F (0° to 50°C) |
| Relative Humidity | 0-80% non-condensing |
