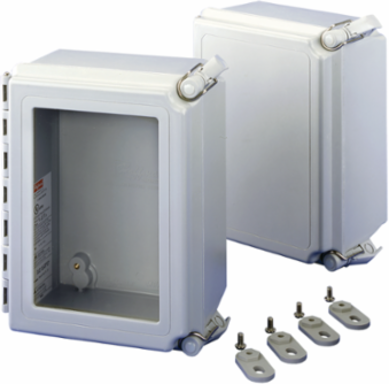

nVent Hoffman A181610CHQRFG Continuous Hinge QR Cover Enclosure 18x16x10 Inch, Fiberglass, NEMA 4X
- MPN: A181610CHQRFG
- UPC: 783510318406
- PPN: HOF-A181610CHQRFG
- UNSPSC: 39121324
CAD
$544.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Continuous Hinge Fiberglass Enclosures have secure seal for durability in corrosive environments. This Continuous Hinge QR Cover Enclosure 4X, A181610CHQRFG item measures 18x16x10inch with material Fiberglass color Light Gray.
Features
- Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
- Fiberglass is easily punched, drilled, filed or sawed
- Gasket assures water-tight and dust-tight seal
- Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Removable hinged cover attached to body with Type 316 stainless steel hinge pin
- Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
- Padlock provisions included
- Material is halogen-free
Documentation & Downloads
Specifications
Additional
- Size
- 18.00 x 16.00 x 10.00 in
- Depth
- 254 mm
- Height
- 457 mm
- Weight
- 14.9 lb
- Material
- Fiberglass, halogen-free
- Color
- Light Gray
- Cover Style
- Solid
- BABA
- Yes, BABA Compliant
- IP Rating
- IP66
- Hinge Pin Material
- Type 316 stainless steel
- Window Material
- Scratch-resistant polycarbonate, permanently bonded
- Attachment Screws Material
- Stainless steel
- Cover Screws Material
- Type 316 stainless steel, slotted, captivated cover screws
- Corrosion Resistance
- Chemical and temperature resistant, durable in corrosive environments
Thickness3 in.
Width406 mm
Overall Dimensions (L x W)472 x 421 mm
Mounting (G x H)481 x 356 mm
FinishSmooth Matte
Color CodeRAL 7035
Latch TypeQuick Release, corrosion-resistant polyester
NEMA Rating4X Watertight, corrosion-resistant
Protection RatingNEMA Type 12
Seal TypeWatertight, dust-tight gasket seal
Mounting Brackets MaterialPolyester
Inserts MaterialMolded-in-place threaded brass inserts
Padlock ProvisionsIncluded
ComplianceNEMA Type 4X, UL 508A Listed, cUL Listed, CSA Certified, IEC 60529 IP66
