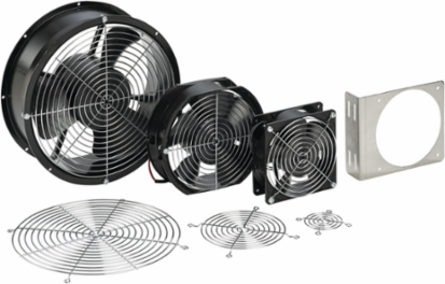

nVent Hoffman A10AXFN Compact 10 Inch Axial Fan, 115VAC, 560 CFM, Steel Construction
- MPN: A10AXFN
- UPC: 783510222307
- PPN: HOF-A10AXFN
- UNSPSC: 40101604
CAD
$509.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Compact Axial Fans provide quiet, reliable cooling in applications where enclosure space is limited. This Compact Axial Fan, A10AXFN item measures 10-inch and is rated for 560 CFM at 115V with Lead Wires.
Features
- Maximum operating temperature is 158 F (70 C)
- 4-inch fan is thermally protected and uses permanently lubricated ball bearings
- 6- and 10-inch fans have ball-bearing construction and split-capacitor motors
- Split-capacitor motors are thermally protected to avoid premature failure
- Dynamically balanced impellers molded from polycarbonate material
- One finger guard is furnished (additional finger guards are available)
- All mounting hardware is provided
- 240 and 560 CFM fans have ball bearing construction and split capacitor motors
- Fans have leadwires with ends stripped 1/2-inch (12-mm) or 6-foot (1.8-m) cord with polarized plug for power connections
- Fan bracket and additional finger guards must be purchased separately
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Voltage
- 115
- Width (W)
- 229
- Max Current
- 1
- Color
- Jet Black
- Fan Diameter
- 10
- Size
- 115v 50/60Hz in
- Flow Rate
- 480/560 CFM max
- Amperage Rating
- 1.0/.88 A
- Sound Pressure Level
- 49dBA at 60 Hz
- Finish
- Alum/Black
Airflow951
Height (H)229
Depth (D)95
MaterialMild Steel
Color CodeRAL 9005
Weight5
Blade Size10-inch diameter
Voltage Rating100 - 120 VAC
Fan Speed1650rpm at 60Hz
Motor TypeAC Motor
