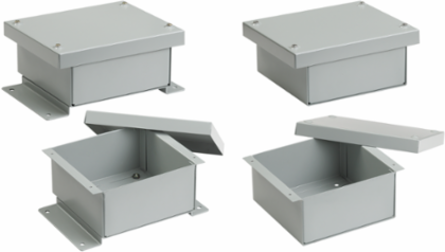

nVent Hoffman A10R104HM Horizontal-Mount NEMA 3R Electrical Enclosure 10 Inch x 10 Inch x 4 Inch Gray Steel
- MPN: A10R104HM
- UPC: 783510153557
- PPN: HOF-A10R104HM
- UNSPSC: 39121303
CAD
$92.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Horizontal-Mount, Type 3R eliminates the need of a vertical mounting structure in rooftops or pads. This Horizontal-Mount Type 3R, A10R104HM item measures 10.00x10.00x4.00 inches with a material of Steel colored Gray.
Features
- The screw cover is the drip shield providing 3/4-inch overhang on each side for outdoor protection
- No gasketing
- Screw locations on cover are embossed
- Enclosure body flange is formed outward
- Mounting holes on back for direct mounting through the back to strut or mounting surface; vertical structure for mounting not required
- Included mounting brackets provide a 1-inch clearance off surface for protection against pooling water
- Enclosures are finished with paint over plated surfaces
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 254
- Protection Rating
- NEMA Type 3R
- Color
- Gray
- Thickness (T)
- 1.52
- IP Rating
- IP32
- Material
- Steel
Height (H)254
Depth (D)102
FinishGalvanized
Color CodeANSI 61
NEMA Rating3R Weather-resistant, except dust
Weight10.76
Size10.00x10.00x4.00 in
